Additional information
| Brand | HR Wallingford |
|---|

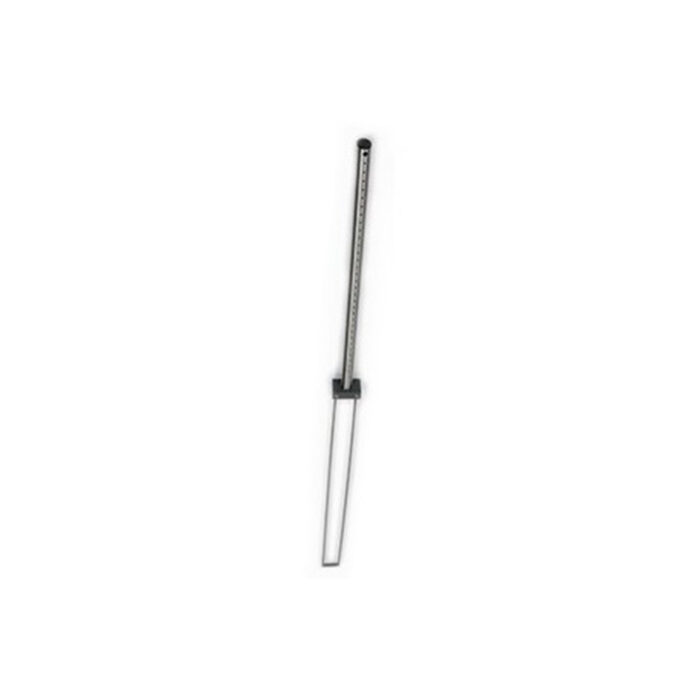

Twin Wire Wave Probe – 900 mm
Wave probe operate by measuring the current that flows between two stainless steel wires that are immersed in water. This current is converted to an output voltage that is directly proportional to the immersed depth.
Each wave probe comprises two parallel stainless steel rods with a plastic head and foot. The head is fixed to the calibration stem and a mounting block is supplied that allows the calibration stem to be fixed to any vertical surface.
Specification
- Active length: 900 mm
- Probe type: resistive
- Other lengths available: 300 mm, 600 mm, 1200 mm
