Additional information
| Brand | HR Wallingford |
|---|

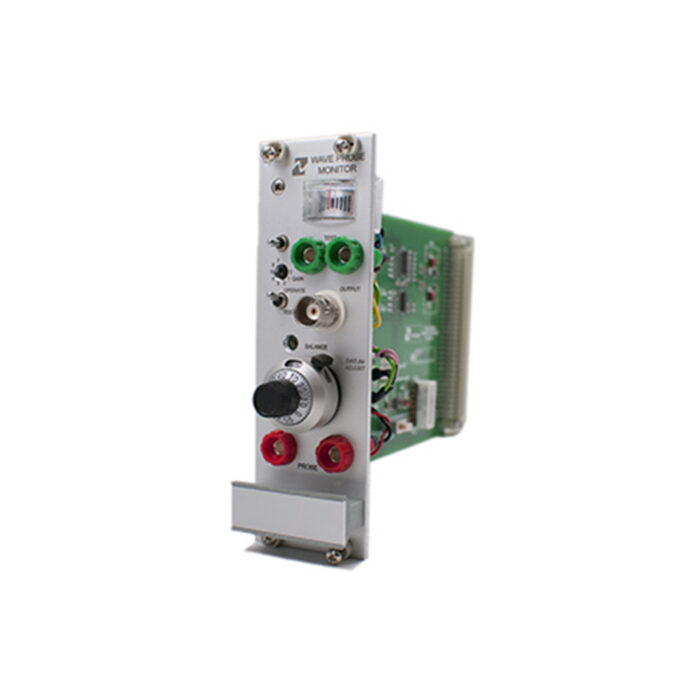

Wave Probe Monitor Module
The wave probe monitor module is an electronic circuit that uses the process of measuring current to determine the height of the water level. It is located within the wave probe monitor case and connects to the wave probe by a twin core cable
100% Original and qualityRelated products
-
Marine, Naval, Hydrodinamic and OceanographTowing Carriages
HR Wallingford design towing carriages for marine research institutes, universities and educational institutes.
HR Wallingford self-propelled carriages are installed on rails above towing tanks, sea-keeping and manoeuvring basins, ocean basins, flumes or ice tanks. They are used to tow scaled, instrumented models through still water, waves or ice. They supply a wide range of sizes and configurations, from small educational carriages for university laboratories, through to high speed towing carriages for ship design evaluation and research. They also design and supply multi-axis motion carriages for sea-keeping and manoeuvring basins and ocean basins. These have an integrated sub-carriage for forced model manoeuvres using a towing system, as well as the ability to track free-sailing models.
HR Wallingford build carriages for tanks from 1.5 up to 50 metres wide. The carriage speed and rails are tailored to the type of tests, vessels and model scales that the facility is designed for. For example slow, carriages with speed accuracy for ice tests or high speed carriages for naval applications.
Towing carriages for research institutes
These carriages can be either manned or unmanned and are typically more than six metres wide and over 100 metres in length with speeds greater than six metres per second. The self-propelled carriages are used for mounting precise instruments to measure forces and moments.
We know that every project is unique; our expert team will work with you to develop a bespoke towing carriage solution that meets your specific requirements.
Towing carriages for universities and educational institutes
HR Wallingford design and build towing carriages for smaller research facilities based in universities and educational institutes. These carriages are designed for towing tanks from two metres or four metres wide, with a minimum length of 40 metres up to a maximum of around 60 metres. The carriages are typically designed to run at a maximum speed of three metres per second, but can run up to four metres per second if the tank is long enough.
They unmanned carriages are light weight, rigid and robust platforms that can carry a wide variety of equipment.
Instrumentations for use with carriages
HR Wallingford offer a full range of instrumentation for use with both they carriages or existing carriages. These include:
1. Resistance dynamometers
2. Self-propulsion dynamometers
3. Open water propeller dynamometers
4. Surface or underwater model force measuring balances
5. Detachable carriage mounted large amplitude horizontal planar motion mechanisms
6. Vertical planar motion mechanisms for underwater model manoeuvring testing
7. Model clamps and guiding arms(0 reviews) -
Marine, Naval, Hydrodinamic and OceanographWater Level Float Gauge – 300 mm
The water level float gauge uses a float which moves up and down a displacement transducer to measure slowly changing water levels, typically in flumes or 3D basins. The water level is determined by accurately measuring the distance from the head of the transducer to the magnetic field produced by a magnet mounted inside the float. The advantage of this method is that there is no contact, and therefore no friction, between the float and the transducer.
The transducer consists of a 10mm diameter stainless steel tube, which contains a stretched magnetostrictive wire. The tube is welded to a stainless steel head which contains all the electronics for the transducer.
Probe length
This product has a 300mm probe. 600, 900 and 1200mm probe lengths are available from this website. Other ranges are available on request.Digital display unit option
The user can choose to purchase their water level float gauges equipped with a digital display unit, which shows pressure in a range of parameters.Key features
- Excellent linearity
- Versatile display unit
- Easy to use
- Rugged design
- Non contacting
Transducer
- Range: 300, 600, 900 and 1200mm (other lengths available on request)
- Transducer diameter: 10.5mm
- Float diameter: 51mm
- Transducer and float material: Stainless steel grade 304
- Linearity: 0.05%
- Response time: less than 1ms
- Transducer supply: 24V DC
- Transducer output: 0-10V DC
- Cable length: 5m (other lengths available on request)
