Data AcQuisition software (HR DAQ)

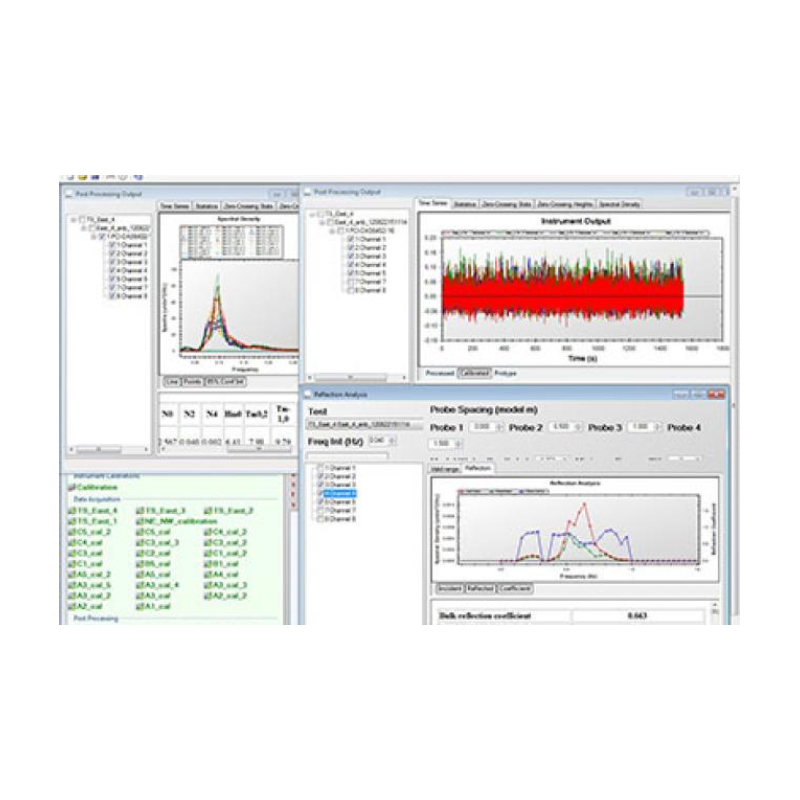

The Data AcQuisition software (HR DAQ) is used to collect and analyse data from a variety of instruments used in physical models such as wave gauges, Acoustic Doppler Velocimeters (ADV) and pressure sensors.
Product features:
- Specifically designed for wave analysis
- Instrument calibration
- Data collection
- Spectral analysis
- Statistical and wave counting analysis
- Reflection analysis
This comprehensive Windows based data acquisition and analysis program, suitable for 64 analogue input channels, is project based and is split into three sections.
Calibration and scaling of inputs
The calibration section allows the modeller to calibrate any instruments installed in physical models that require regular in-situ calibration, such as resistance type wave probes. It also allows the modeller to enter factory calibrations for other sensors such as pressure sensors.
This section creates calibration files for use with the acquisition and analysis sections. It provides a comprehensive set of facilities for setting up the calibration files that are used to convert the analogue voltage signals in the model, to data at full scale, assuming Froude or Reynolds scaling.
Data acquisition
HR DAQ is set to collect raw data for a specified period of time at a specified frequency.
Data analysis
After the data has been collected, HR DAQ can be used to perform a number of analysis routines. The principal analysis program includes two routines; one is a Fast Fourier Transform spectral analysis and the other a statistical one.
Specification
Calibration routine:
- Labelling of input channels
- Automatic calibration with Linear Least Squares fit shown for each channel
- Automatic setting of zero levels
Data collection:
- Sampling frequency 1-500Hz
- Monitoring of channels during data collection
- Trace of all channels displayed or turned off as necessary
- Elapsed time and time to completion
- Requires compatible Analogue to Digital (A/D) converter
Data analysis:
- Spectral analysis
- Energy density
- Hs m0, m2, m4, Tp
Statistical analysis:
H1/3, Tm, Standard deviation, Variance, Reflection analysis, Bulk reflection coefficient, Incident and reflected spectra
Hardware/software requirements:
- Desktop or laptop with Quad Core processor
- Software can be downloaded directly from our web-server
- Windows-based environment operating system
- One user licence activation code provided per computer
Related products
-

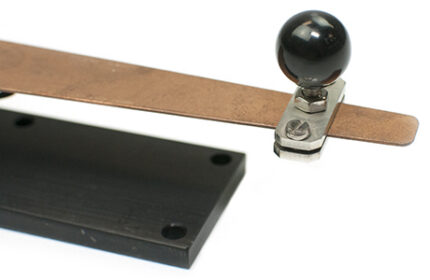

Marine, Naval, Hydrodinamic and OceanographForce Measurement System

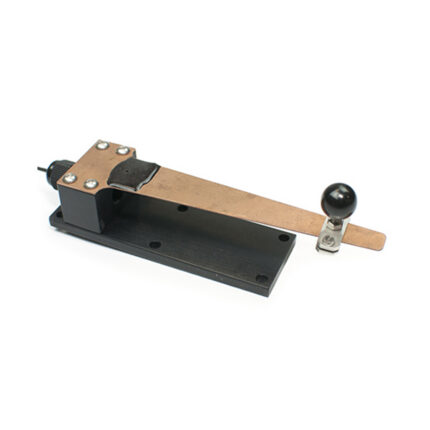

Our force measurement system models the forces on ship mooring lines and fenders in a variety of sea states.
The simplicity of operation together with bespoke data analysis software make these devices the ideal choice for all physical modelling requirements.
Our force measurement system includes:
- 2 x fender force transducers
- 6 x mooring line transducers
- 8 x 40m extension cables
- 1 x 8-channel conditioning with analogue output unit
Key features
- Options for ship fender and mooring line applications
- Range of springs supplied for mooring lines to give non linear responses
- Strain gauge range 0-5N
- Simple to install and operate
- Made from corrosion resistant materials
- Operates with HR DAQ
