Metacentric Height

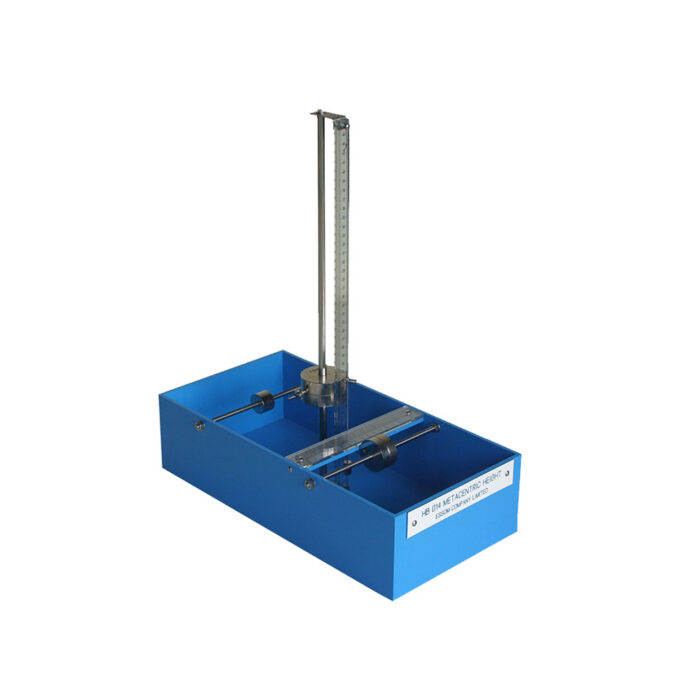

This equipment is designed to determine the metacentric height of a floating body and the height variation with the tilt angle. It is to be used with Hydraulics Bench i.e. HB100 or HB100N or a bowl (separately supplied).
The equipment consists of a rectangular pontoon. The center of gravity of the pontoon can be moved sideways by moving horizontal jockey weight.
The angle of tilt of the pontoon is indicated by a plumb-bob on a scale attached. The center of gravity of the pontoon can also be moved vertically by means of adjustable vertical weights on the mast.
TYPICAL EXPERIMENTS
- Experiment to illustrate the floatation characteristics
- Determination of the Metacentric Height
TECHNICAL DATA
| Pontoon | 400 mm long x 200 mm wide x 100 mm high. | |
| Horizontal scale | 1 mm graduation. | |
| Maximum angle of tilt | ± 13ox 0.5º graduation | |
| Vertical sliding weight | 1 ea. | |
| Jockey weight | 1 ea. | |
| Software for data display and analysis by computer (separately supplied). | ||
100% Original and qualityRelated products
-
Pump Test SetCompact Series and Parallel Pump Test Set – Variable Speed
This is simple self-contained bench top unit for studying the series and parallel pump characteristics at various speeds.
The unit consists of two sets of centrifugal pump with motor and a storage tank on a steel base, advanced inverters, and measuring instruments. By manipulating flow control valves, each pump can be operated individually or both pumps connected in series or parallel.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Flow rate vs head for individual pump.
- Flow rate vs head for two pumps connected in series or parallel.
- Pump input, output and overall efficiency at various speed.
TECHNICAL DATAPump ratings – Maximum flow rate 80 Lpm – Maximum head 18 m water Measuring instruments – Pressures Pressure gauges at pump suction and discharge – Flow rate Water meter and stop watch – Speed and motor input power indicator Advanced inverters Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews) -
Turbine Test SetMini Hydro Power Plant
This is a self contained bench top unit for studying the power generation by a hydraulic turbine. The unit consist of a storage tank and a low head pump to simulate a dam reservoir, a cross flow hydraulic turbine, a generator which is connected to the turbine by a V-belt, a lamp load bank, a dynamometer, and measuring instrument.
TYPICAL EXPERIMENTS- Turbine torque vs speed at various heads and flow rates.
- Mechanical power output vs speed for various heads and flow rates.
- Mechanical efficiency vs speed for a given head and flow rate.
- Electrical power output at various heads and flow rates.
- Overall power plant efficiency at various electrical loads.
TECHNICAL DATATurbine: – Type Cross Flow – Construction - 168 mm diameter stainless steel runner, shaft and nozzle.
- Stainless steel casing with transparent window.
– Ratings - 400 W of mechanical power.
- Maximum speed approx 1500 rpm.
Pump ratings – Motor 2.2 kW – Maximum flow rate 500 lpm. Generator - 0.75 kW, 220 V, 1 Ph, 50 Hz.
- Electrical output upto 300 W.
Electrical load Lamp bank, 7 lamps, 400W. Dynamometer Water cooled stainless steel mechanical brake with anti splashing system. Measuring instruments – Torque Spring balance – Pressure Pressure gauge – Sensors with digital display - Electrical output power.
- Turbine and generator speeds.
- Flow rate.
Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews)
