Atmosphere Furnace
Atmosphere furnace with precise ±1°C temperature control, vacuum and multi-gas support for reliable sintering and heat treatment in laboratory and industrial applications.
MAIN PURPOSE
This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises for experiments and production of powder, electronics, metallurgy, medicine, ceramics, new materials, special materials, chemicals, metal sintering and metal heat treatment.
TECHNICAL CHARACTERISTICS
- Introduces advanced foreign technology; independently developed high-efficiency, energy-saving and environmentally-friendly electric furnace
- Advanced and reasonable structure with aesthetic appearance
- High-quality cold-rolled steel shell processed by CNC machine tools
- Double-layer heat-resistant furnace body; outer surface temperature close to room temperature
- Constructed of ceramic fiber materials with strong heat resistance and corrosion resistance
- No collapse, crystallization, slag dropping, or pollution; long service life
- Indicator has reached advanced protection level
- Supports vacuumizing and passing various gases
- Valve control equipped with intake valve, exhaust valve and vacuum valve
- Supports gases such as argon, ammonia and oxygen
- Vacuum system adopts multi-stage O-shaped seals
- Energy-saving and electricity-saving; environmentally friendly high-purity composite alumina/ceramic polycrystalline fiber insulation
- Lightweight structure with low heat storage; operates at approximately half power on average
- Long service life heating elements (resistance wire / silicon carbon rod / silicon molybdenum rod), easy replacement
- Integrated design; flexible use; space-saving
- Temperature control accuracy ±1°C (third-party inspection certificate available)
- Excellent furnace temperature uniformity with no dead angle in furnace cavity
MAIN ADVANTAGES
- Adjustable heating rate with automatic operation without manual guarding
- Automatic protection and alarm for over-temperature, over-pressure, over-current, leakage, broken coupler and broken rod
- Double-layer shell with convection insulation layer
- Two-color coated exterior finish
- Good reputation with many customers
- Good cost performance with perfect after-sales service, 1-year warranty and lifetime door-to-door maintenance
- Furnace door adopts inflatable sealed structure with long-term sealing performance
- Equipped with oxygen detector to measure oxygen content of exhaust gas (optional multi-gas detectors)
ADDITIONAL CONFIGURATION
- Computer-connected remote control for single or multiple furnaces
- Temperature program setting, storage and historical curve viewing
- Programmable mass flow meter for accurate gas flow control
- Molecular pump, diffusion pump, Roots pump and mechanical pump options for various vacuum requirements
- High-precision digital vacuum gauge display
ATMOSPHERE FURNACE SIZE
| Chamber Size (mm) | Voltage (V) | Power (Kw) | Temp Control Accuracy |
| 200 × 150 × 150 | 220 | 4 | ±1°C |
| 300 × 200 × 120 | 220 | 6 | ±1°C |
| 300 × 200 × 200 | 380 | 10 | ±1°C |
| 400 × 250 × 160 | 380 | 12 | ±1°C |
| 400 × 300 × 300 | 380 | 14 | ±1°C |
| 500 × 300 × 200 | 380 | 15 | ±1°C |
| 500 × 300 × 300 | 380 | 18 | ±1°C |
| 500 × 400 × 400 | 380 | 20 | ±1°C |
| 500 × 500 × 500 | 380 | 25 | ±1°C |
| 800 × 500 × 500 | 380 | 40 | ±1°C |
| 1200 × 800 × 800 | 380 | 95 | ±1°C |
| 2000 × 800 × 800 | 380 | 150 | ±1°C |
Temperature Range Options: 800°C / 1000°C / 1200°C / 1400°C / 1600°C / 1700°C / 1800°C / 2200°C
Chamber size and temperature can be customized according to customer requirements.
Control System Options: Computer control / Touch screen control / Micro-computer control
Optional Systems: Vacuum system and atmosphere system configurable according to customer requirements
ATMOSPHERE FURNACE PRODUCT SERIES:

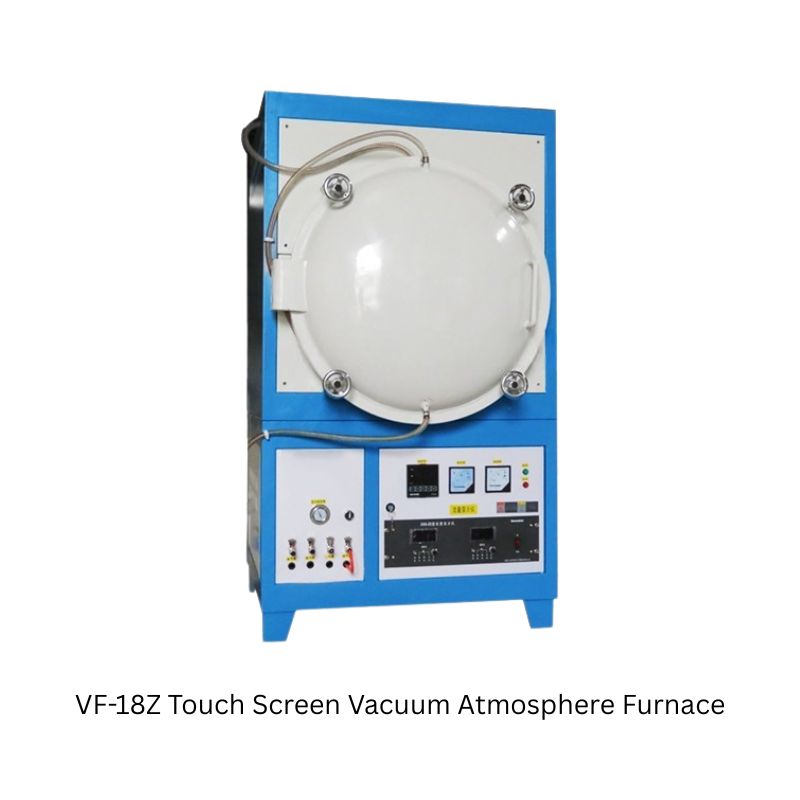

VF-18Z Touch Screen Vacuum Atmosphere Furnace

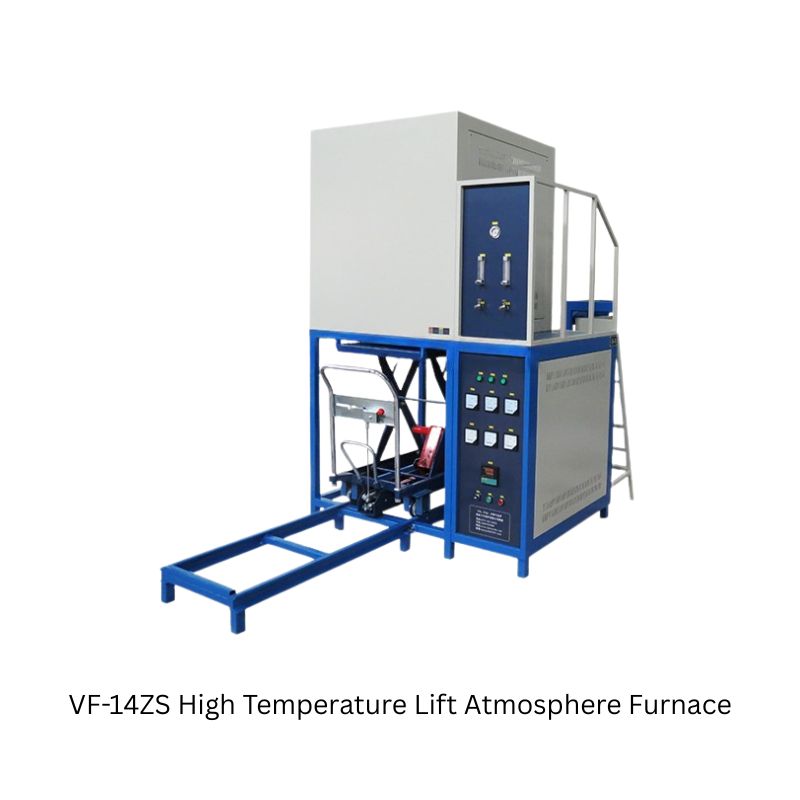

VF-14ZS High Temperature Lift Atmosphere Furnace

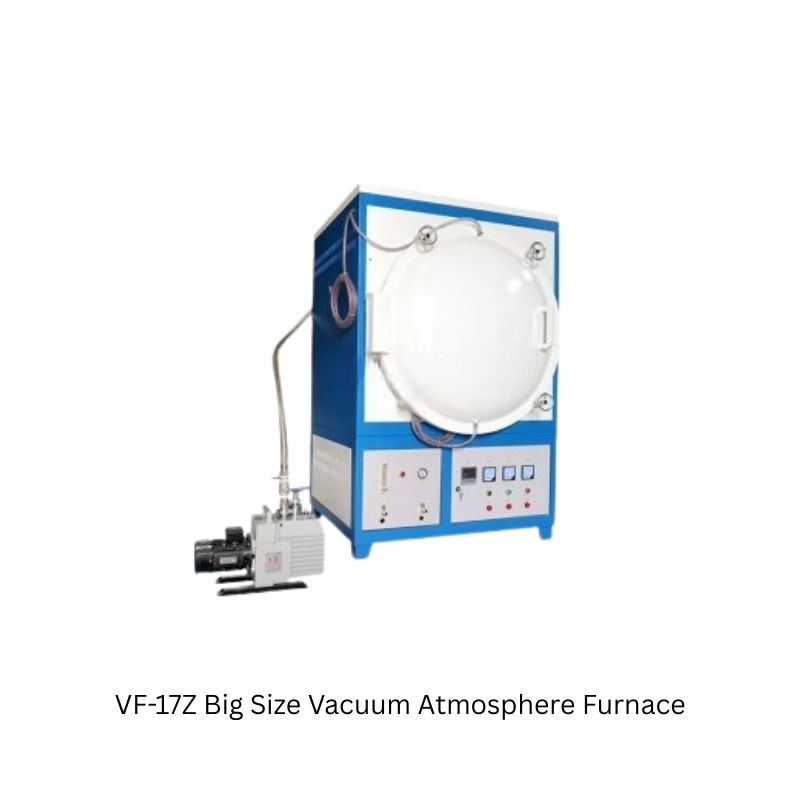

VF-17Z Big Size Vacuum Atmosphere Furnace

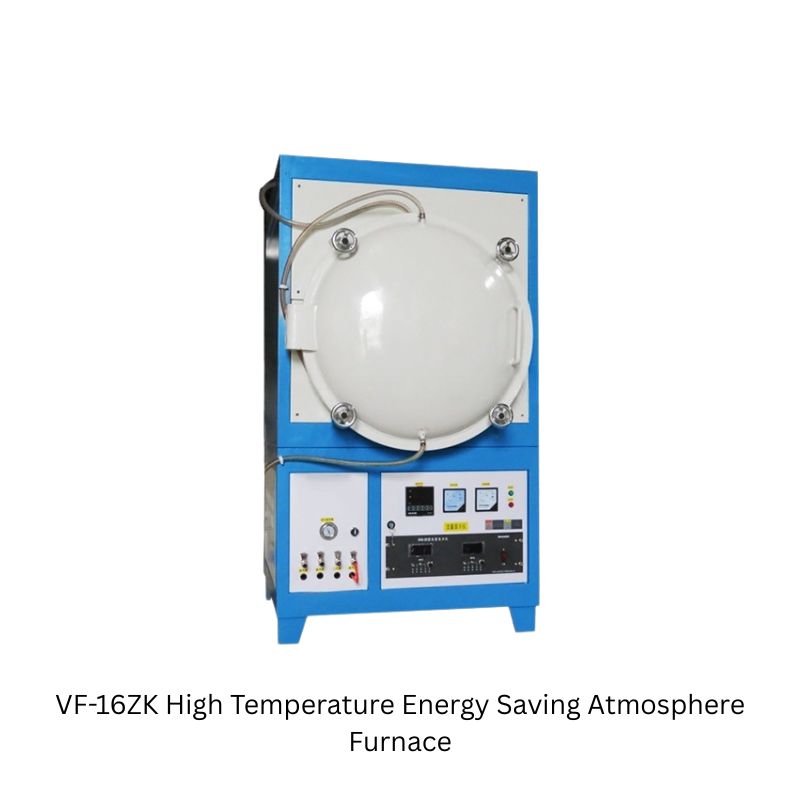

VF-16ZK High Temperature Energy Saving Atmosphere Furnace

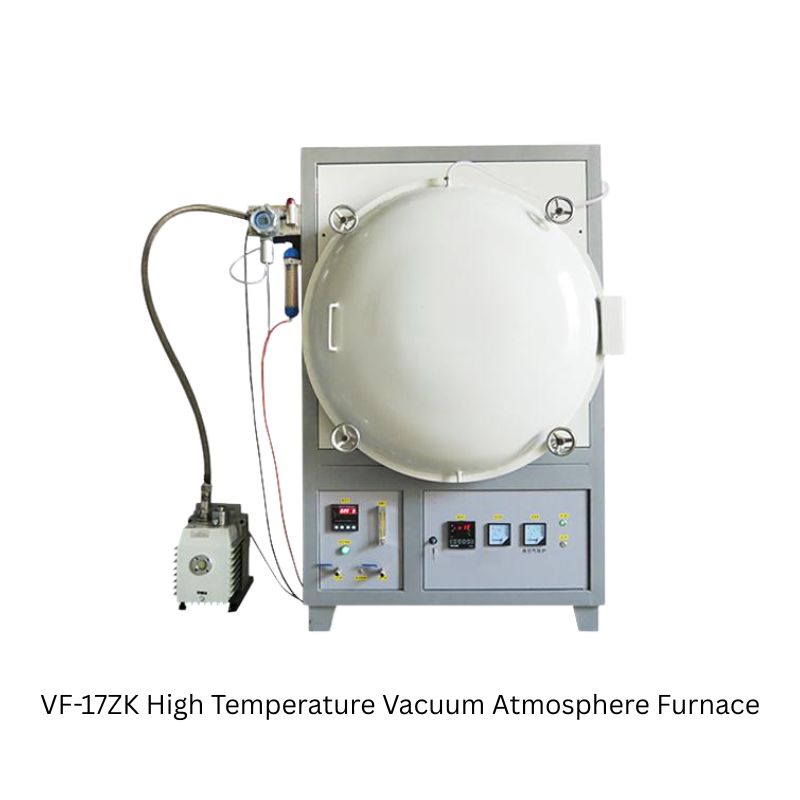

VF-17ZK High Temperature Vacuum Atmosphere Furnace

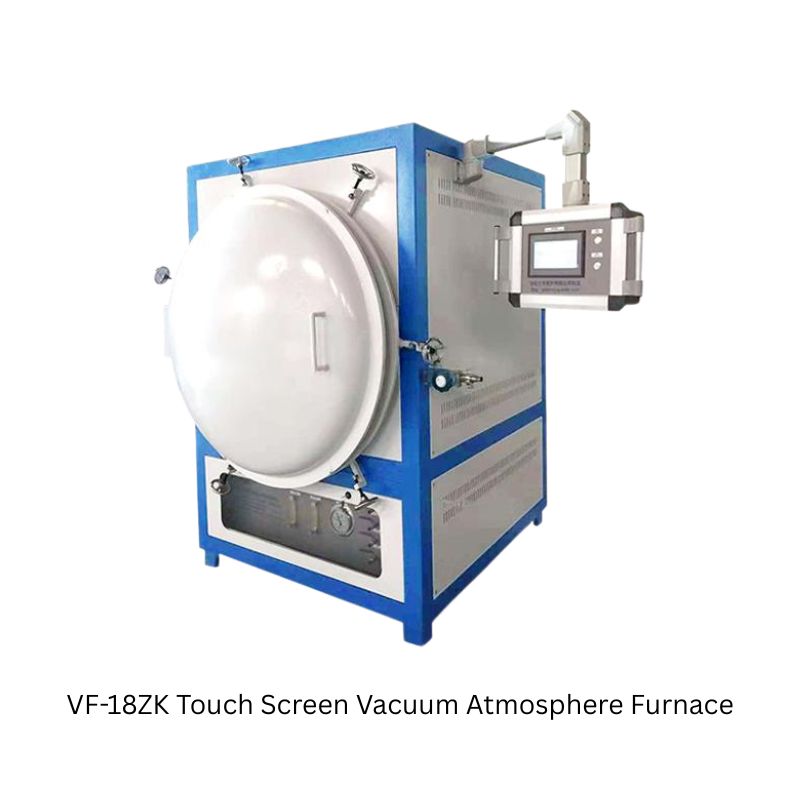

VF-18ZK Touch Screen Vacuum Atmosphere Furnace
