Structures and Accessories
Showing 1–9 of 36 results
-
Structures and Accessories
Accessories for Structures
The following accessories are common and required in many experiments. If several sets of structure experiments are needed, user with limited budget need not purchase these accessories for every set if all the sets are not used at the same time.
ST 111 ROUND SUPPORT
ST 112 BUILT-IN/KNIFE EDGE SUPPORT,
Sliding Flat BarST 113 BUILT-IN/ KNIFE EDGE SUPPORT,
Flat Bar or RodST 115 MOMENT SUPPORT
ST 116 MOMENT LOAD CELL
ST 119 HORIZONTAL FORCE SUPPORT
ST 120 HORIZONTAL FORCE LOAD CELL
ST 124 VERTICAL FORCE SUPPORT
ST 125 VERTICAL FORCE LOAD CELL
ST125L VERTICAL FORCE LOAD CELL, Long
ST131,ST131A DIAL INDICATOR
ST132A DIGITAL INDICATOR
ST133 DIGITAL INDICATOR, With Output
ST 150 FORCE INDICATOR
(0 reviews) -
Structures and Accessories
Area Moment Method
The equipment is used for verification of the deflections and slopes of a beam by area-moment method. It is to be used with ST300 Universal Structural Frame (separately supplied).
The beam has a moment support and one built-in / knife edge support. The supports allow longitudinal travel of the beam. The moment support has a rotating arm which is monitored by a dial indicator. The moment is applied and measured by load on the rotating arm. The beam deflection is measured by a dial indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Deflections and slopes of a beam by area-moment method
- Shape of a deflected beam.
TECHNICAL DATATest beam – Steel 2 – Aluminum 1 – Brass 1 ST 115 Moment Support 1 ST 112 Built-in/Knife edge Support 1 Pulley set 1 Hanger slider 1 Cord 1 Load hangers 2 Weights 1 lot. ST131 Dial Indicator 3 Software for data display and analysis by computer (separately supplied). (0 reviews) -
Structures and Accessories
Bending Moment
This equipment is used for measurement of bending moment on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied).
The beam has two parts with a ball bearing hinge at the joint. An underhung spring balance holds the hinge in
compression, hence resists bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.Instruction manual is also included.
TYPICAL EXPERIMENTS- Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam
- Variation in bending moment for variations in load, load position and load arrangement
- Comparison of experimental results with theoretical values and bending moment diagrams
TECHNICAL DATABeam length 700 mm ST111 Round Supports 2 Spring balance 1 Load hangers 3 Weights 1 lot Software for data display and analysis by computer (separately supplied). (0 reviews) -
Structures and Accessories

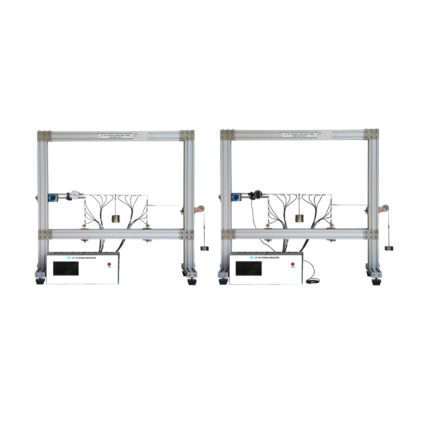

Bending Moment in a Frame
This equipment allows measurement of strain hence bending moment along the length of the vertical and horizontal members of a rectangular portal frame. It is to be used with ST300 Universal Structural Frame (separately supplied).
Strain gauges are fixed at equal distance along the frame members, 8 on the horizontal member and 4 on each vertical member. Both vertical legs of the frame can be clamped to ST300 Universal Structural Frame. Loads can be applied on the horizontal and/or vertical members and/or removable moment arm of the frame. Strains on the frame can be measured by the strain indicator. Bending moment at each strain gauge can be calculated from the strain and compared with the theoretical value.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Relationship between measured strain and bending moment.
- Elastic bending of portal frames and linear relationship between the bending moments in the frame and the load.
- Bending moments for internal and external moments on vertical members
- Comparison of ideal and non-ideal structures
TECHNICAL DATAPortal frame 200×400 mm with . 19×6 mm (approx.) section with 16 strain gauges ST153 Strain Indicator 16 channels Cord 1 Load hangers 2 Weights 1 lot. Pulley set 1 ST131 Dial Indicator 1 Software for data display and analysis by computer (separately supplied). (0 reviews) -
Structures and Accessories

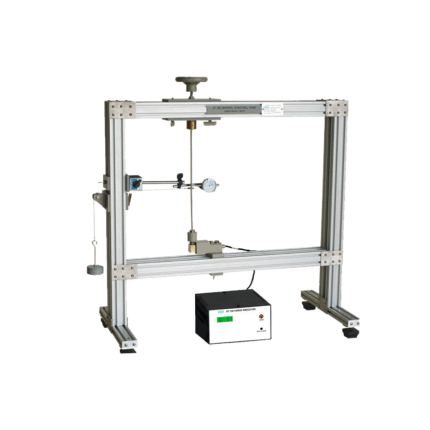

Column Buckling
The equipment is used for studying strut buckling under load. It is to be used with ST300 Universal Structural Frame (separately supplied).
The top frame has a loading screw which pushes a cylindrical strut support sliding in a bushing. The bottom frame has a load cell and a cylindrical strut support in a socket.
Each strut has end conditions for knife-edge or built – in. The load reading is by an indicator. A small lateral load is applied by means of a pulley and a weight hanger. A dial indicator measures the lateral deflection.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Euler buckling loads
- Relationship between strut length and collapse load
- Relationship between various end-fixing conditions and collapse load
- Nature of deflection and deflected shapes with various end-fixing conditions
TECHNICAL DATATop support with a loading screw Bottom support with a load cell 1 ST150 Force indicator 1 Strut specimens: – Materials Mild steel, brass, aluminum Strut supports: – Built in 2 – Knife – edges 2 Horizontal load hanger set 1 Pulley set 1 Hanger slider 1 Cord 1 Weights 1 lot ST131 Dial indicator 1 Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50Hz. (0 reviews) -
Structures and Accessories
Continuous Beam
The equipment is used for measurement of the reactions of a two-span continuous beam with and without settlement of a support. It is to be used with ST300 Universal Structural Frame (separately supplied).
The equipment consists of a two-span continuous beam supported by two vertical force supports and a built-in/knife edge support. The settlement of each load measuring support is measured by a dial indicator and can be simulated by height compensation mechanism. Three movable load hangers with a set of weights for downward as well as upward loading are provided. Each beam deflection is measured by a dial indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Principle of moments.
- Reactions for a point load along a simply supported beam.
- Reactions for a continuous beam.
- Deflection of a simply supported beam.
TECHNICAL DATATest beam – Steel 2 – Aluminum 1 – Brass 1 ST 113 Built-in/Knife Edge Support 1 ST 124 Vertical Force Supports 2 Pulley set 1 Cord 1 Load hangers 3 Weights 1 lot ST131 Dial Indicators 2 Software for data display and analysis by computer (separately supplied). (0 reviews) -
Structures and Accessories
Deflection of Beams and Cantilevers
The equipment is used for measurement of deflections and slopes of a beam under bending or and compare with values calculated by differential equation. It is to be used with ST300 Universal Structural Frame (separately supplied).
The beam rest on two built-in/knife edge supports. Load hangers are used for point loads and a number of weights are used for uniform load. Deflections and slopes are measured by dial indicators.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Beam deflections
- Beam bending formula
- Shape of a deflected beam.
TECHNICAL DATATest beam – Steel 2 ST112 Built-in/Knife Edge Support 2 Hanger sliders 2 Load hangers 2 Weights 1 lot ST131 Dial Indicators 2 Software for data display and analysis by computer (separately supplied). (0 reviews) -
Structures and Accessories

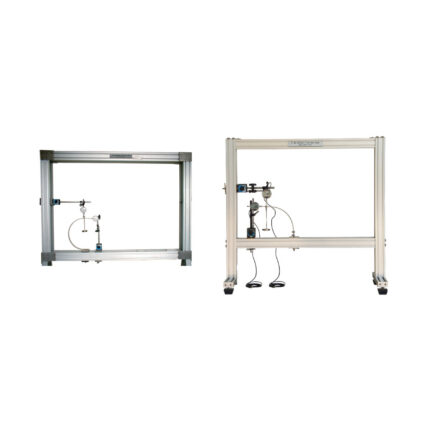

Deflection of Curved Bars
This equipment is used for measurement of horizontal and vertical and vertical components of curved bar deflections, and comparison of measured values with theoretical ones. It is to be used with ST300 Universal Structural Frame (separately supplied).
The apparatus consists of curved bar clamped at one end. Load is applied and deflections are measured on the free end by dial indicators.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Investigation of the relationship between load, horizontal deflection and vertical deflection
- Elastic bending.
TECHNICAL DATACurved bars, Steel 19 x 3 (approx.) mm cross section - Quadrant
- Semicircle
- Ring
Load hanger 1 Weights 1 lot ST131 Dial Indicators 2 Software for data display and analysis by computer (separately supplied). (0 reviews) -
Structures and Accessories

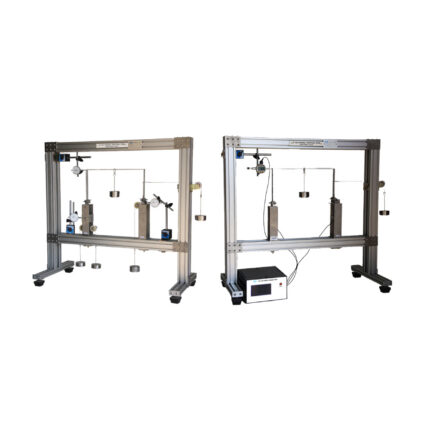

Deflections and Reactions of Frames
This equipment allows comparison of experimental and theoretical deflections and reactions of a rectangular portal and an “S” frame when loads are applied. It is to be used with ST300 Universal Structural Frame (separately supplied).
The frame is made of steel bar with a fixed leg while the other leg can be moved horizontally. Loads are applied vertically and/or horizontally. Moment at the frame fixed leg is measured by a moment support and a horizontal force on the frame free leg is measured by a horizontal force support. Deflection of the frame is measured by a dial indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Horizontal reaction and fixing moment due to a varying single point load
- Comparison of behavior to simplified theory
TECHNICAL DATAPortal frame 200×400 mm with 19×6 mm (approx.) section “S” frame Center limb 300 mm and all other members 150 mm ST115 Moment Support 1 ST119 Horizontal Force Support 1 Load hangers 2 Weights 1 lot. Pulley set 1 ST131 Dial Indicators 3 Software for data display and analysis by computer (separately supplied). (0 reviews)
