Additional information
| Brand | Bytronic |
|---|

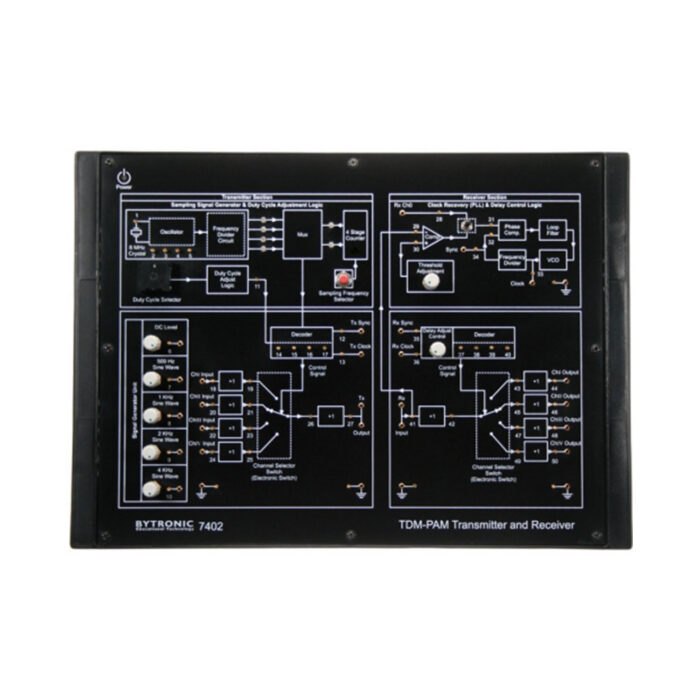

Pulse Amplitude Modulation/Demodulation Trainer
The unit is one of a range of digital communication trainers and provides all necessary inputs and connections for students to study pulse amplitude modulation / demodulation techniques, time division multiplexing and demultiplexing of signals and signal reconstruction.
Experiments:
- Study of pulse amplitude modulation technique
- Study of time division multiplexing and demultiplexing
- Study of PLL as frequency multiplier to generate clock from sync signal
- Study of effect of varying duty cycle of sampling pulse on signal reconstruction
- Study of 3 modes of operation to regenerate original signal
- 3 connections between transmitter and receiver (clock, sync & information)
- 2 connections (sync & information). Clock regenerated at receiver
- 1 connection (information only). Clock and sync derived at receiver
Key Features
- Crystal controlled Clock
- On-board signal generator (Synchronized) DC and Sine
- On-board pulse generator
- Demonstrates sampling and reconstruction as per Nyquist criterion
- 4 Analog input channels (TDM-PAM)
- Four switch selectable sampling frequencies
- Pulse duty cycle selectable
- Generation of clock at receiver by PLL system
- 4th order Butterworth L. P. Filters
