Stepper Motor Training System

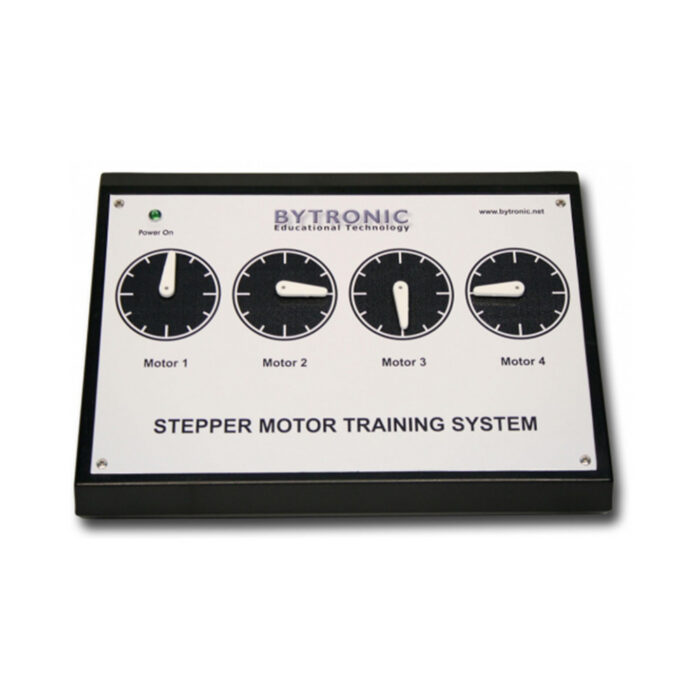

The Stepper Motor Training System (SMTS) is a self-contained unit that connects to a PC through USB. The SMTS is designed to teach the principles and operations of stepper motors and can be used as an application for programming, providing experience into the many applications of stepping motors.
Stepping motors, are motors which rotate one step when supplied with a pulse. Typical applications include CNC machine tool drives, X-Y plotters and Printers. The control signals required are almost always the same, regardless of motor size.
The system comprises of four Stepper Motors and includes an interactive software program. The software introduces the principles of stepper motors, their use and control. The software includes questions and answers to allow the teacher to evaluate the knowledge of the students.
Key Features
- Introduction to Stepper Motor control
- Manual and automated control
- Self-contained unit
- Tutorial software
- Question and answers for each section of the tutorial software
- Clockwise and anti-clockwise direction
- Can be used as a target application for programming software
- Easily interfaced to PC through USB
100% Original and quality
Extended WarrantyRelated products
-
Electronics, Control System and InstrumentationControl System Trainer
The Control System Trainer (CST) is designed for the study of digital and analogue control engineering using fundamental control theory with simple direct connections or the use of programming software. The CST can be used to carry out the various experiments using the elements and breadboard to design a control application to a specification. Simple or complex experiments are possible by linking the range of devices and sensors on the CST.
The CST has two main project areas and a range of digital logic building blocks with a prototyping area. The first project area has a D.C. motor, for speed and direction control combined with a heater for temperature control. Consisting of a 5V dc motor; this is used in a closed-loop to drive a fan that cools a heater to a set temperature or can be used to break an infra-red beam for speed control. The second, main project area is a light control system; a controller is required to maintain a set luminance when an external interference from a second lamp is introduced, it uses two light sources, one source of light and one source of light disturbance.
There are a variety of projects to undertake using the range of sensors and devices on the CST. These elements are a bread board area, voltage to frequency converter, light dependant resistor (LDR), a de-bounced switch, a tilt switch, Piezo buzzer, TTL monitor, a bank of logic switches, a logic probe and a clock source. Headers that accept standard solid core wires are used to connect each element of the CST. Connection to a PC is possible using a suitable interface card through digital and analogue connections.
Experiments:
- Generic courseware for the CST
- Generate digital outputs
- Read in digital inputs
- Read in digital inputs on port B and output them on port A
- Sound Piezo buzzer when CST is tilted
- Pulse an output at a rate specified by user
- Sense closure of the de-bounced switch and keep a count of the occurrences
- Sense closure of the de-bounced switch and keep a count of the occurrences over a specified time interval
- Count input pulses from the clock generator, via a timer/counter channel
- Implement software generated PWM signal
- Implement hardware generated PWM signal using two timer/counter channels and clock generator
- Implement hardware generated PWM signal using two timer/counter channels and user input
- Generate an analogue voltage in the range 0-5V
- Read an analogue voltage in the range 0-5V
- Generate triangular wave output
- Calibrate the LDR circuit in the light control box
Key Features
- Building control circuits and PC control programming
- Introduces electronic control techniques
- Bread board area allows expansion of project ideas
- Control of a D.C. motor for temperature, speed and direction control
- Light control system
- Seven other projects with varying complexity
- Connection for control from a PC using program development software
- Comprehensive labworks for control circuits and programming software
(0 reviews) -
Electronics, Control System and InstrumentationBasic Electricity Trainer
The basic electricity trainer can be used to develop the student’s abilities and teach basic electrical circuits such as series and parallel circuits, electromagnet induction, coil behaviour with AC and DC circuits, diode and transistor characteristics etc. This simple training kit provides a strong operation for future studies in electrical or electronics.
Experiments:
- Resistances individually, as well as in series and in parallel connections
- Ohm’s law mathematical relationship between three variables; voltage (V), current (I) and resistance (R).
- The behaviour of current when light bulbs are connected in a series/parallel circuit.
- Kirchhoff’s Law for electrical circuits
- R-C circuit and the behaviour of a capacitor in an R-C network and phase shift due to capacitor.
- The L-C circuit and its oscillations
- The characteristics of a semiconductor diode
- The characteristics of a transistor.
- Faraday’s Law of electromagnetic induction
- The behaviour of current when inductance is introduced in the circuit.
- Lenz’s Law and effect of eddy current.
- The relay and constructing a switching circuit by using a relay.
- The Oersted experiment
- The phenomenon of mutual induction.
- Construction and study of the step down transformer with the help of coils and cores.
- Construction and study of the step up transformer.
- The effects of moving I core on a step up transformer
- Conversion of a galvanometer into voltmeter.
- Conversion of a galvanometer into ammeter.
- The Hysteresis curve.
Key Features
- Stand Alone Operation
- Includes all the Basic Electrical fundamentals
- Solderless connections
- Complete set of coils and cores to understand the Basics of Electro magnetic induction and Transformer
(0 reviews)
