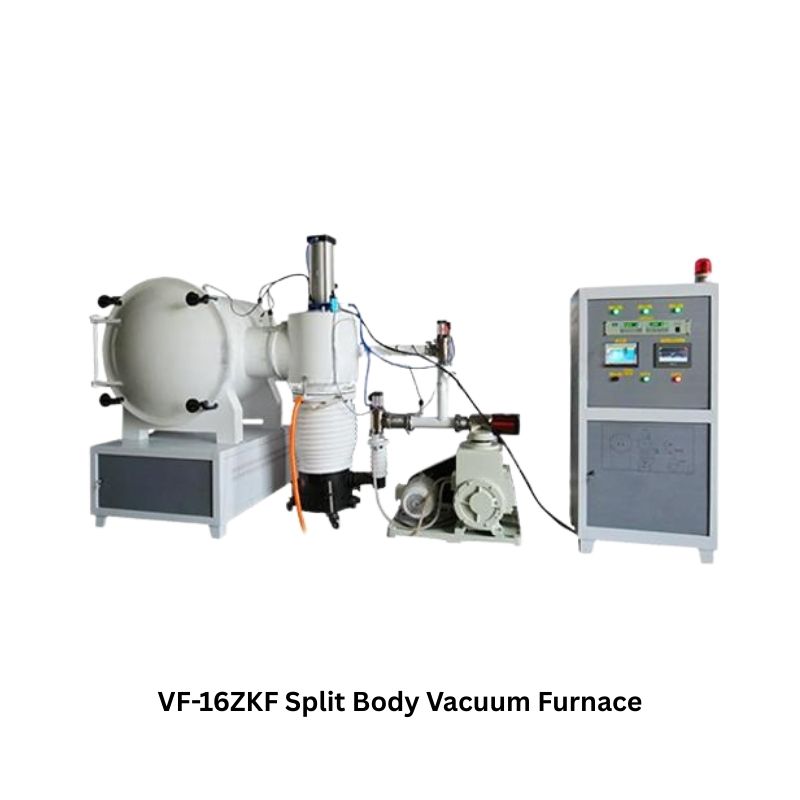

VF-16ZKF Split Body Vacuum Furnace

Application

This equipment is widely used in universities, research institutes, and industrial enterprises for laboratory experiments and production processes. Typical applications include industries such as powder metallurgy, military technology, electronics, metallurgy, medicine, ceramics, glass, machinery manufacturing, new material development, special materials, refractory materials, building materials, chemicals, metal sintering, and metal heat treatment.

Technical Characteristics

Advanced Energy-Saving Design
The furnace adopts advanced technology and independent R&D to deliver an energy-efficient and environmentally friendly electric furnace. It features a scientific design, elegant appearance, and a robust structure for reliable long-term operation.

Durable Furnace Structure
The outer shell is made from high-quality cold-rolled steel with precision CNC machining. It is coated using a premium two-color imported epoxy powder electrostatic spraying process, providing excellent resistance to high temperatures, corrosion, and fading.

Uniform Temperature Field
The furnace ensures a highly uniform temperature field. Its double-layer heat-resistant furnace body keeps the external surface temperature close to room temperature. Adjustable heating and cooling functions allow flexible operation.

High-Quality Insulation Materials
The furnace chamber uses imported high-temperature composite fiber materials, processed using advanced CNC construction techniques. These materials offer excellent thermal insulation, corrosion resistance, long service life, and zero contamination.

Intelligent Temperature Control System
The control system utilizes microcomputer intelligent PID control technology, featuring:

Automatic control and self-tuning function
Up to 50 programmable heating segments
Multiple heating, holding, and cooling programs
High temperature control accuracy

Comprehensive Safety Protection
Independent protection systems include:

Over-temperature protection
Over-voltage protection
Over-current protection
Broken thermocouple detection
Power failure protection
Leakage protection
Short-circuit protection

Remote Monitoring & Control
Through proprietary control software, the furnace can be connected to a computer for remote operation and monitoring. Users can start or stop the furnace, set temperature programs, store programs, view historical temperature curves, and print operation records.

Certification
ISO9001:2008 • CE Certification • AAA Certificate

Furnace Description

Item	Specification
Product	Split Body Vacuum Furnace VF-16ZKF
Heating Rate	0–30 °C/min (Recommended: 0–10 °C/min)
Temperature Control	16 / 30 / 50 / 100 step programmable control with PID automatic adjustment
Temperature Accuracy	±1 °C
Chamber Material	Aluminum Oxide Fiber (Al₂O₃)
Heating Elements	Resistance Wire / SiC Rod / MoSi₂ Rod
Working Voltage	380V, Three-phase, 50/60Hz (Customizable)
Customization	OEM available for chamber size, temperature, and voltage

Furnace Size Options

Chamber Material	Chamber Size (mm)	Voltage (V)	Power (kW)	Temp. Precision
Aluminum Oxide Fiber	200 × 150 × 150	220	4	±1 °C
Aluminum Oxide Fiber	300 × 200 × 120	220	6	±1 °C
Aluminum Oxide Fiber	300 × 200 × 200	380	10	±1 °C
Aluminum Oxide Fiber	400 × 250 × 160	380	12	±1 °C
Aluminum Oxide Fiber	400 × 300 × 300	380	14	±1 °C
Aluminum Oxide Fiber	500 × 300 × 200	380	15	±1 °C
Aluminum Oxide Fiber	500 × 300 × 300	380	18	±1 °C
Aluminum Oxide Fiber	500 × 400 × 400	380	20	±1 °C
Aluminum Oxide Fiber	500 × 500 × 500	380	25	±1 °C
Aluminum Oxide Fiber	800 × 500 × 500	380	40	±1 °C
Aluminum Oxide Fiber	1200 × 800 × 800	380	95	±1 °C
Aluminum Oxide Fiber	2000 × 800 × 800	380	150	±1 °C
