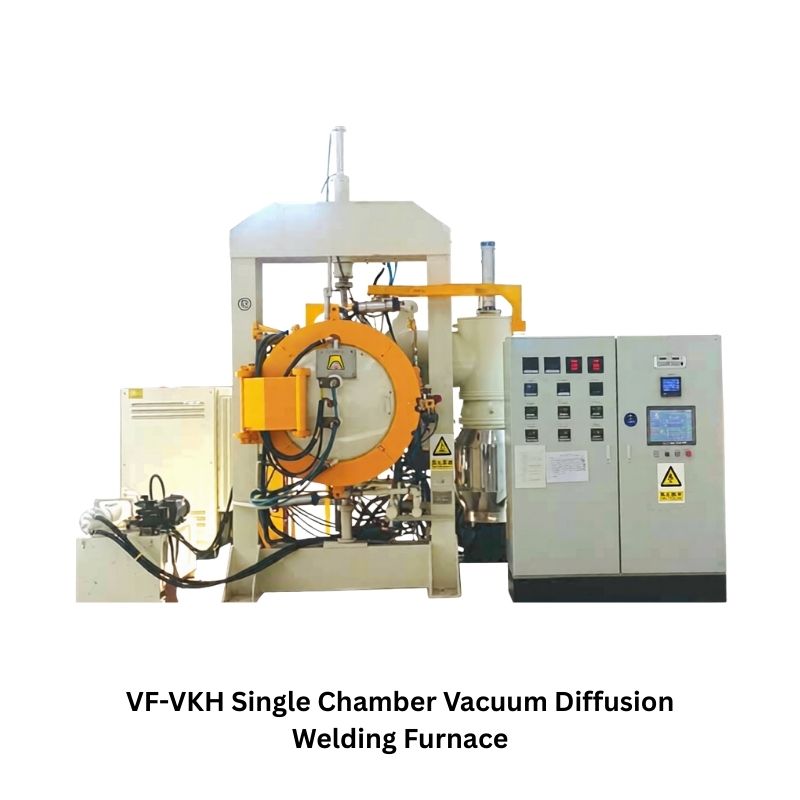

VF-VKH Single Chamber Vacuum Diffusion Welding Furnace
VKH vacuum diffusion welding furnace delivers uniform heating and high vacuum performance for precision, high-strength welded joints.
Description
MAIN PURPOSE
The VKH model is designed for precision diffusion welding technology, catering to a diverse range of materials. It is ideal for aerospace, automotive, medical industries, and advanced manufacturing sectors requiring high-strength, high-integrity welded joints with superior reliability and consistency.
TECHNICAL CHARACTERISTICS
- Precision Temperature Control ensuring uniform heat distribution across the welding chamber
- Advanced Vacuum System maintaining optimal diffusion welding environment
- High-Quality Heating Elements made from premium graphite or molybdenum materials
- Efficient Cooling Mechanism reducing cycle times while preserving weld integrity
- User-Friendly Interface with intuitive controls and programmable settings
- Robust Construction engineered for durability under demanding industrial conditions
MAIN ADVANTAGES
- Versatile Welding Capabilities for various materials and thicknesses
- Energy Efficient Operation reducing power consumption and operating costs
- Reduced Operational Costs with low maintenance requirements
- Superior Weld Strength and Quality meeting stringent industry standards
- High Throughput Production with reliable repeatability
- Environmentally Friendly Design minimizing emissions and supporting sustainable manufacturing
ADDITIONAL CONFIGURATION
- Customizable Chamber Sizes to meet specific project requirements
- Atmosphere Control Options for specialized welding environments
- Upgraded Cooling Systems for optimized performance
- Remote Monitoring and Control Capability for enhanced operational oversight
FURNACE SIZE
| Model | Valid Zone (mm) | Maximum Temp (°C) | Heating Power (Kw) | Ultimate Vacuum (Pa) | Gas Cooling Pressure (Bar) |
| VKH-40 | 450×300×300 | 1320 | 40 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VKH-80 | 600×400×400 | 1320 | 80 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VKH-120 | 700×500×500 | 1320 | 120 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VKH-150 | 900×600×600 | 1320 | 150 | 5×10⁻³ or 4×10⁻¹ | 2 |
Chamber size and temperature according to customer requirements.
Control System Options: Computer control / Touch screen control / Micro-computer control
