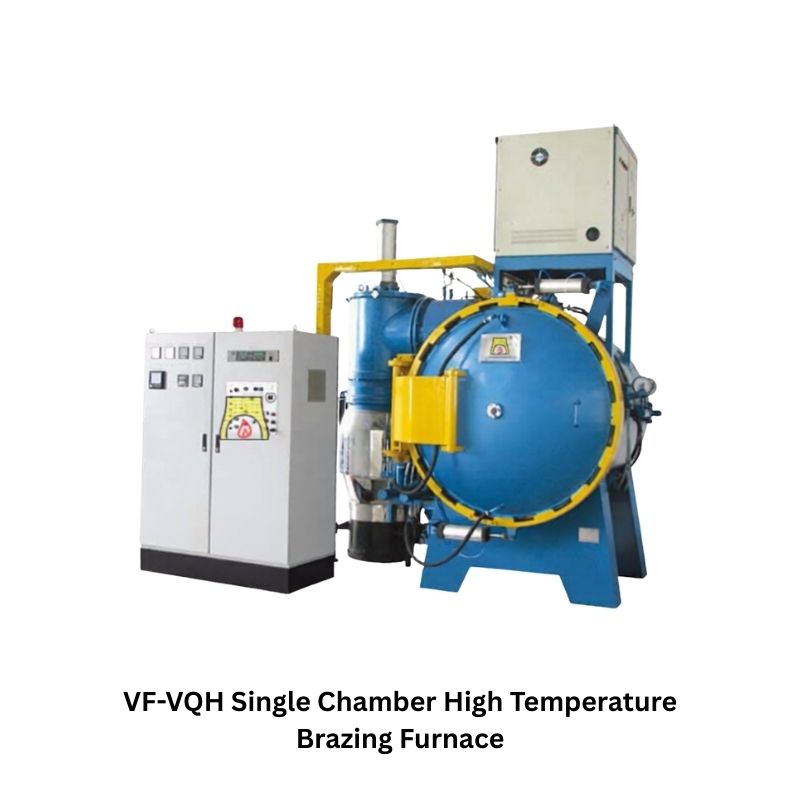

VF-VQH Single Chamber High Temperature Brazing Furnace
VQH vacuum brazing furnace delivers uniform heating and controlled cooling for high-quality brazing of advanced alloys and components.
Description
MAIN PURPOSE
The VQH model is designed for high-precision vacuum brazing of advanced materials, including nickel-based, copper-based, and titanium alloys, high-temperature alloys, cemented carbide, and non-ferrous metals. It is ideal for aerospace, automotive, medical components, diamond tools, and other industries requiring exceptional brazing quality and structural integrity.
TECHNICAL CHARACTERISTICS
- Advanced Heating Elements ensuring uniform heat distribution for precision brazing
- Superior Insulation delivering high thermal efficiency and reduced heat loss
- Precision Cooling Medium using high-purity nitrogen or argon gas for controlled cooling
- Compact, Automated Design optimizing production efficiency and workspace utilization
- Robust Safety Protocols with diagnostics, alarms, and safety interlocks
- Customizable Workspace with flexible chamber sizing options
MAIN ADVANTAGES
- Broad Material Compatibility for diverse industrial brazing applications
- Energy Efficient Design lowering operational costs and supporting sustainable manufacturing
- Enhanced Safety Measures protecting operators and equipment
- Tailored Production Solutions for specific processing requirements
- Automated Precision ensuring consistent brazing quality
- Certified Quality Assurance meeting stringent industry standards
ADDITIONAL CONFIGURATION
- Advanced Control System with programmable process management
- Enhanced Thermal Management options for specialized high-temperature brazing
- Optional Cooling System Upgrades for improved cycle times
- Flexible Chamber Customization to suit varying production scales
FURNACE SIZE
| Model | Valid Zone (mm) | Maximum Temp (°C) | Heating Power (Kw) | Ultimate Vacuum (Pa) | Gas Cooling Pressure (Bar) |
| VQH-40 | 450×300×300 | 1320 | 40 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VQH-80 | 600×400×400 | 1320 | 80 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VQH-100 | 750×500×500 | 1320 | 100 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VQH-150 | 900×600×600 | 1320 | 150 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VQH-200 | 1200×600×600 | 1320 | 200 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VQH-300 | 1500×800×800 | 1320 | 300 | 5×10⁻³ or 4×10⁻¹ | 2 |
Chamber size and temperature according to customer requirements.
Control System Options: Computer control / Touch screen control / Micro-computer control
