PLC Trainers
Showing all 6 results
-
PLC TrainersAllen Bradley Micro800 Series

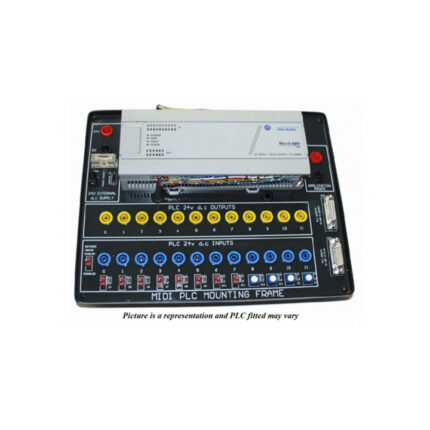

The Bytronic PLCAB1R is a PLC trainer fitted with the Micro800 series PLC. The Micro800 series of PLC’s are designed to meet a variety of applications, with embedded Ethernet and Serial ports. It can function as a RTU (remote terminal unit) for remote machines with support for Modbus RTU and TCP. It has embedded support for 4 thermistor temperature inputs for use as a DDC (direct digital controller) for Building Management Systems. The Micro820 supports an embedded microSD slot that can be used for storing large amounts of data that normally cannot fit into memory for applications that require datalog and recipe. All files are stored in CSV text format for easy viewing and editing. The microSD card is also used for backing up and restoring the program, which can be used for duplicating the program in several machines.
Also, available as an optional extra, is the Allen-Bradley Micro800 Remote LCD Display. This connects to the controller’s embedded RS232 port and works as accessory for the Micro820 controller. With 4 or 8 lines of ASCII text and a tactile keypad, it can be used as a simple HMI. Its system menu is available in multiple languages for direct viewing and editing of controller variables. Controller’s Ethernet address can also be easily set from the menu. Supports front panel mounting as well as DIN rail mounting next to the controller.
Key Feature
- All connections easily accessible through 4mm colour coded terminals and D connector
- PLC prewired, alleviates the issue of damage to PLC with rewiring for each use
- Built in switches allows pre-testing of program.
- Easily stored and setup
(0 reviews) -
AutomationJobmaster Training Station Modular Training
The JobMaster® Training Station is a flexible solution to host diverse automation, mechatronics, instrumentaion and industrial training solutions for schools, colleges and other educational programs. The modular and mobile platform consists of a double sided flexible mounting panel, a wheeled base with storage and various accessories to enhance the solution. The training station offers:
- Quality Hardware – Robust, flexible and mobile hardware platform consisting of industry-standard components
- Flexible – Top only, top plus base, single or double sided, wheeled, expandable, multiple accessories
- Modular – diverse electronics modules, training kits and curriculum packs create a modular classroom
Skill-based E-learning Content
The JobMaster Training Station hosts training program curriculum of different types and additional training options are in development.JobMaster’s training brings versatility to your training program. The FlexPanel system of interchangeable components allow the training station to be quickly configured for teaching a variety of topics.
JobMaster Automation/Fluid Power Training
Pneumatics
Intelitek Pneumatic Technology curriculum introduce students to the principles of pneumatics and pneumatically controlled systems commonly used in automated manufacturing environments.
Using Pneumatic simulation software, trainees create, modify, operate and observe simulated industrial grade pneumatic and electro-pneumatic devices and circuits. Students will connect different components, change physical parameters and observe system responses.Hydraulics
Intelitek Hydraulic Technology curriculum introduce students to the principles of hydraulics and hydraulically controlled systems commonly used in automated manufacturing environments. Using
Hydraulic simulation software, trainees create, modify, operate and observe simulated industrial grade hydraulic and electro-hydraulic devices and circuits. Students will connect different components, change physical parameters and observe system responses.Programmable Logic Controllers (PLCs)
Intelitek’s Programmable Logic Controller courseware gives students a solid grasp of industrial PLCs, ladder logic programming, inputs and output devices and electrical control. PLC hardware that is part of the JobMaster Training Station and is integrated with PLC software that lets students observe and understand the control logic behind the operation of industrial PLCs. The
Programmable Logic Controllers courses emphasize PLC theory and basic programming. Students learn to program a PLC and simulate industrial applications that require electrical control.(0 reviews) -
PLC TrainersMitsubishi Fx3

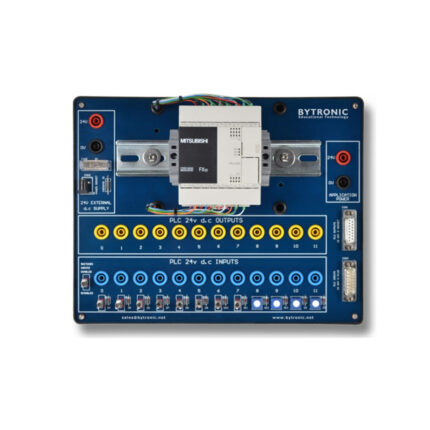

The Mitsubishi FX3s PLC is the latest in the FX3 series of PLC by Mitsubishi. The PLC is fixed to a pre-wired PCB that enables easy connections. The trainer gives access to the PLC’s I/O capabilities providing an effective means for the student to test and debug the program prior to connecting to the application. All inputs and outputs are available through the colour coded safety sockets (4mm) and ‘D’ type connectors. Simulation of inputs is possible using the built-in switches.
The controllers of the FX3S is designed to handle basic control task, it has a standard RS422 interface port for serial communications. A USB port (mini B) permits connection to a PC for high speed programming uploads and downloads along with monitoring. The FX3S has a built in EEPROM that can store up to 16,000 steps, 4,000 steps are reserved for the PLC program and up to 12,000 steps can be used for comments, and processes basic instructions in 0.21µs, making the FX3S an autonomous and very service-friendly system. For programming of the FX3S the GX Works2 programming software is used.
Key Features
- All connections easily accessible thru 4mm colour coded terminals and D connectors
- PLC prewired, alleviates the issue of damage to PLC with rewiring for each use.
- Built in switches allows pre-testing of program.
- Easily stored and setup
(0 reviews) -
AutomationPLC L25 for Automation
This device set is used to conduct practical exercises in the field of controls, with a focus on automation.
It consists of the control XLC L25 with quick-connect system Snap In. 16 digital inputs are also accessible with a switch/sensor, and 16 digital outputs with an LED display. Analog inputs for voltage¨+/–10 V, current 0-20 mA or sensor with M12 plug.
It coordinates with the exercise book “Sensor Technology – Automation.”
The device set is delivered in a practical case (L-Boxx), which is equally suited for transport and storage.
(0 reviews) -
AutomationPLC L25 with Universal Simulator
This “PLC L25 with Universal Simulator” device set is used to teach control technology basics via 24 exercises. It is coordinated with the exercise book “PLC L25 with Universal Simulator.”
The device set consists of the PLC L25, including the software tool(with user license) for program creation, and a PLC universal simulator with 24 different exercise templates, which coordinate with the exercise books.
No additional work station is needed. The provided PLC is a tabletop version, which is also equipped with a bracket for the grooved panel.
To execute the 24 exercises, the corresponding templates are placed on the positioning pins of the base panel, thereby covering irrelevant labeling and LED indicators.
Practice is provided for creating assignment lists and designing PLC programs. All programs are supplied as sample solutions. The PLC also has OCE (OpenCore Engineering), which enables programming using different programming languages, e.g. VisualBasic, and allows software control using programs like LabView and Excel.
Thus, this control is i4.0 capable. The device set is delivered in two stackable plastic cases (L-Boxx).
(0 reviews) -
PLC TrainersSiemens S7-200

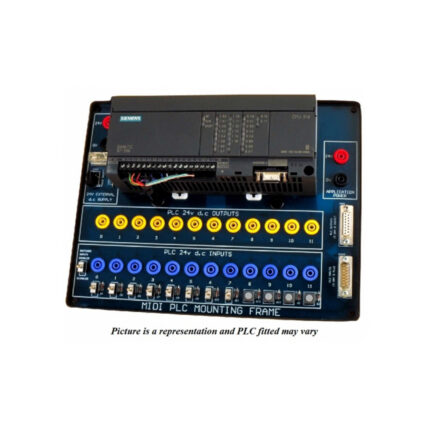

The Bytronic PLCSF range consists of a mounting frame and PLC combination based around a Siemens S7-200. The Simatic S7-200 family of programmable controllers are a compact and powerful micro PLC solution for automation tasks. They are also easily expandable with various digital and analogue modules available. The S7-200 communication port connects to a PC allowing the CPU to be programmed using Siemens STEP7 Micro/WIN32 software. The mounting frame gives easy access to the PLCs I/O capabilities providing an effective means for the student to test and debug their program prior to connecting to the application.
Key Features
- 24V dc digital I/O
- Enables students to test and debug control programs
- Colour coded 4mm terminals
- Easy connection to application via ‘D’ connectors
- Built-in EEPROM memory
- Switched inputs
- PLCS4F – 8 DC Inputs, 6 Digital Transistor Outputs
- PLCS5F – 14 DC Inputs, 10 Digital Transistor Outputs
- PLCS6F – 14 DC Inputs, 10 Digital Transistor Outputs and 8 Relay Outputs
(0 reviews)
