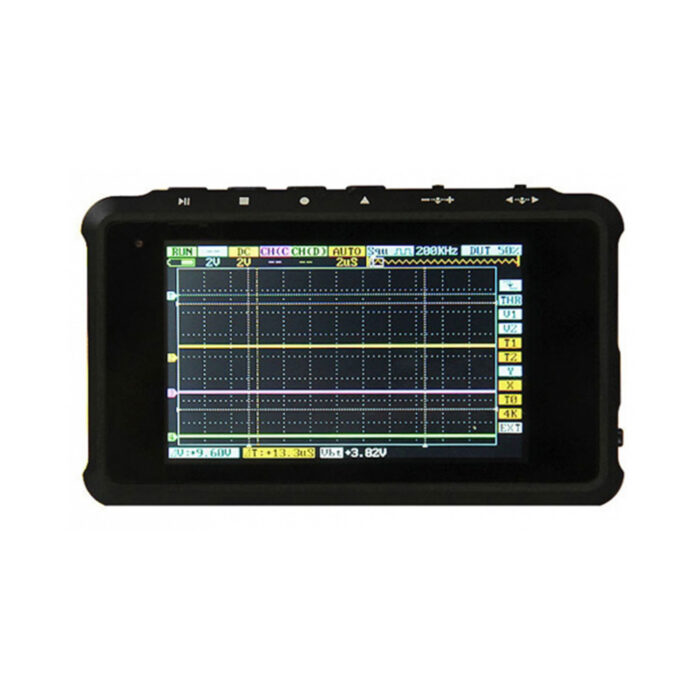

8Mhz Touch Screen Pocket Oscilloscope
The small compact pocket touch screen 8Mhz 4 channel oscilloscope is a practical instrument for basic electronics ranging from all fields such as education, laboratory testing to electrical engineering.
Key Features
- 8Mhz Bandwidth Range
- Touch Screen
- 4 Channels
- Small compact design
- Signal Generator
- Waveform Storage
100% Original and quality
