ARCboat

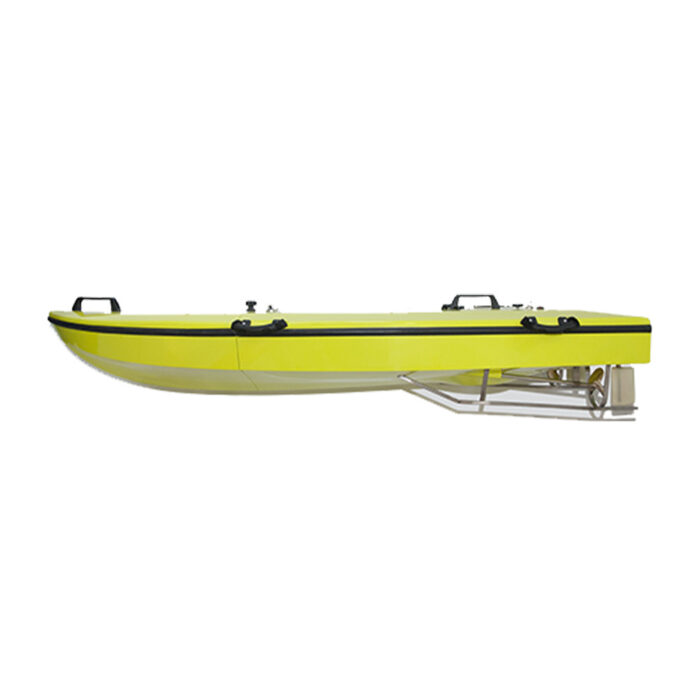

The ARCboat is a remote controlled boat that is used to collect river and estuarine data including flow, depth and suspended sediment concentrations. It was developed in partnership with end-users and perfected to meet their exact needs. The boat can carry a variety of Acoustic Doppler Current Profilers (ADCP) and other instruments when required.
HR Wallingford provides outstanding customer support throughout the ownership of an ARCboat, from delivery to ongoing training and support.
Key features
- Can carry a variety of ADCPs and other instruments
- High quality data collection with minimal underhull air entrainment
- Robust and reliable design
- Excellent manoeuvrability
- Designed with operator safety in mind
- Lightweight and easy to transport
- Unique detachable bow
- Can also be used to measure environmental conditions in lakes
100% Original and qualityRelated products
-
Marine, Naval, Hydrodinamic and OceanographWater Level Float Gauge – 300 mm
The water level float gauge uses a float which moves up and down a displacement transducer to measure slowly changing water levels, typically in flumes or 3D basins. The water level is determined by accurately measuring the distance from the head of the transducer to the magnetic field produced by a magnet mounted inside the float. The advantage of this method is that there is no contact, and therefore no friction, between the float and the transducer.
The transducer consists of a 10mm diameter stainless steel tube, which contains a stretched magnetostrictive wire. The tube is welded to a stainless steel head which contains all the electronics for the transducer.
Probe length
This product has a 300mm probe. 600, 900 and 1200mm probe lengths are available from this website. Other ranges are available on request.Digital display unit option
The user can choose to purchase their water level float gauges equipped with a digital display unit, which shows pressure in a range of parameters.Key features
- Excellent linearity
- Versatile display unit
- Easy to use
- Rugged design
- Non contacting
Transducer
- Range: 300, 600, 900 and 1200mm (other lengths available on request)
- Transducer diameter: 10.5mm
- Float diameter: 51mm
- Transducer and float material: Stainless steel grade 304
- Linearity: 0.05%
- Response time: less than 1ms
- Transducer supply: 24V DC
- Transducer output: 0-10V DC
- Cable length: 5m (other lengths available on request)
(0 reviews) -
Marine, Naval, Hydrodinamic and OceanographBed Profiling System
The bed profiling system is the result of much development work by HR Wallingford to meet the exacting requirements of hydraulic modellers and to ensure a high degree of reliability. The system is used to assess the effect flowing water has on mobile sediment beds. It is available with a choice of probes to suit a wide range of applications.
Key features
- Utilises our traverse system to position the profiler in a 2D or 3D environment
- Operates both with and without water present
- Choice of laser or touch-sensitive probes
- Accuracy of ±0.5mm vertically and horizontally
- Positive non-slip drives
- Data stored in ASCII format
- Easy to install
