| Brand | Essom |
|---|

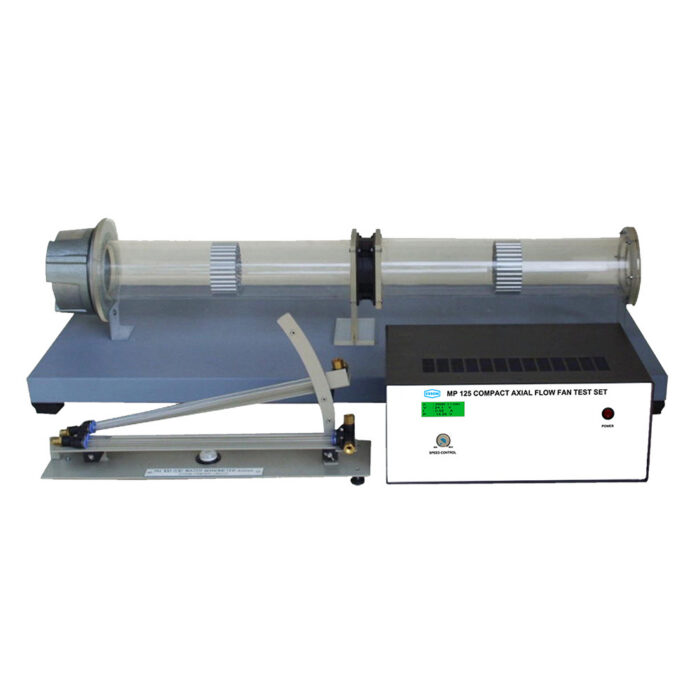

Compact Axial Flow Fan Test Set
This is a bench top unit for a studying of axial flow fan characteristics.
The unit consists of a small axial flow fan with DC motor on a steel base, a speed control switch, inlet and outlet ducts, and measuring instruments.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Flow rate vs pressure
- Fan input, output and overall efficiency.
- Effect of speed on fan performance.
TECHNICAL DATA
| Fan ratings : | |
| – Maximum flow rate | 2.5 m3/min |
| – Maximum pressure | 0.10 kPa |
| Speed control | Motor input voltage |
| Inlet duct | Transparent with flow straighteners and inlet orifice |
| Outlet duct | Transparent with flow straighteners and damper |
| Measuring instruments | |
| – Air flow | Inlet orifice with inclined water manometer |
| – Differential pressure across fan | Twin inclined water manometers (one for air flow rate), 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1 |
| – Temperature | Thermometer |
| – Atmospheric pressure | Barometer |
| – Sensors with digital display |
|
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V 1 Ph 50 Hz. Other power supply is available on request. |
100% Original and qualityRelated products
-
Air Flow and ThermodynamicsFlow Visualization Wind Tunnel
The apparatus is intended for visualization of stream lines flow around models.
The apparatus consists of a stilling entrance, a contraction section with air flow straighteners, a streamlines distributor, a viewing window, and a smoke generator.
Air flow is generated by a fan. The window has a black back ground and side lights are provided for better visualization of the streamlines. The stream lines are in a vertical pattern. Models are provided.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Laminar and turbulence flow observation.
- Flow patterns around bodies.
- Boundary separation on bodies.
- Effects of angle of attack.
TECHNICAL DATAViewing window 180 x 250 mm Number of streamlines 18 Smoke generator 1 ea. with smoke fluid Models - 1 x Aerofoil NACA 0015 profile
- 1 x Cylinder
- 1 x Plate
- 1 x Automobile
Power supply 220V 1Ph 50 Hz. Other power supply is available on request. (0 reviews) -

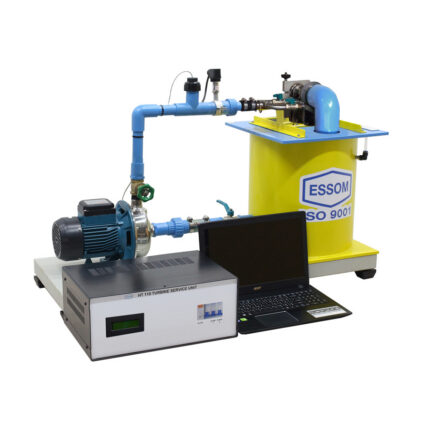

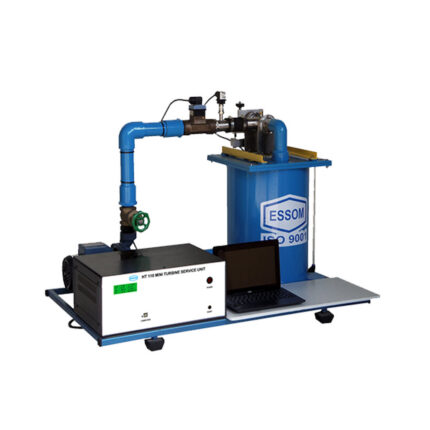

Turbine Test SetMini Axial Flow Propeller Turbine Test Set
