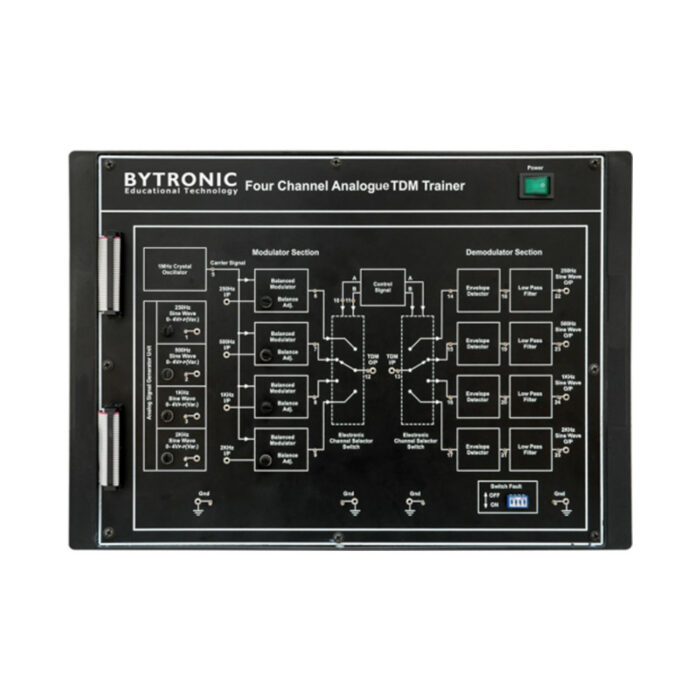

Four Channel Analogue Trainer
The 7507 four channel analogue TDM trainer is part of an analogue communication range which provides all the necessary inputs, test points and connections for experimentation. The 7507 is a practical trainer for students to study time division multiplexing, amplitude modulation, demodulation, multiplexing and demultiplexing techniques.
Description
The 7507 four channel analogue TDM trainer is part of an analogue communication range which provides all the necessary inputs, test points and connections for experimentation. The 7507 is a practical trainer for students to study time division multiplexing, amplitude modulation, demodulation, multiplexing and demultiplexing techniques.
Key Features
- On-board sine generator (synchronized)
- On board DSB/DSBSC modulators
- Crystal controlled carrier frequency generator
- Four Analogue input time multiplexed channels
- Four Envelope detectors
- On board four 4th order low pass filters
- Input-output & test points provided on board
- 8 Switched faults for fault simulation
Additional information
| Brand | Bytronic |
|---|
