Frit Furnaces
The Frit Furnace is designed for precise melting and heat processing of metals and materials used in laboratories, universities, and industrial production. Featuring programmable PID temperature control, high-temperature composite insulation, and efficient heating elements, it ensures uniform heating, energy efficiency, and reliable performance. With customizable crucible sizes and automated operation options, it provides a flexible solution for metallurgy, ceramics, glass, and advanced material research applications.
The Main Purpose
This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises, etc., as an ideal melting equipment for powder metallurgy, ceramics, polished porcelain, glass, new material development, special materials, refractory materials, chemical industry, experiments, and production.
Technical Characteristics
- This equipment introduces foreign advanced technology and is independently researched and developed as a high-efficiency, energy-saving, and environmentally friendly electric furnace. It features advanced structure, beautiful appearance, and a shell made of high-quality cold-rolled steel plates processed by advanced CNC machine tools. The exterior uses luxurious double-color imported epoxy powder electrostatic spraying with high temperature resistance, corrosion resistance, and long-term non-fading performance.
- The furnace has a balanced temperature field. The surface temperature of the double-layer heat-resistant furnace body is close to room temperature, and heating, holding, and cooling rates can be adjusted arbitrarily. The furnace is constructed using imported high-temperature composite fiber materials through numerical control technology, providing strong thermal shock resistance, corrosion resistance, and long service life.
- The control system adopts microcomputer intelligent adjustment technology with PID adjustment, automatic control, self-tuning function, and 50-segment program programming. It can compile various heating, heat preservation, and cooling programs with high temperature control accuracy and stability.
- Integrated module thyristor control with phase-shift trigger and protection system: independent over-temperature protection, over-temperature, over-pressure, over-current, burnout, power failure, leakage, short circuit, and other protections.
- Electric lifting system: Electric lead screw is used for lifting, stable and vibration-free with downward airflow design. The furnace door can be opened to replace the crucible under high temperature conditions.
Main Advantages
- Energy saving and electricity saving, environmental protection and pollution-free (furnace hearth material uses high-purity composite alumina/ceramic polycrystalline fiber, lightweight and heat-efficient).
- Easy replacement and maintenance (heating elements include resistance wire, silicon carbon rod, or silicon molybdenum rod with long service life).
- Integrated design, convenient operation, flexible installation, and space-saving structure.
- High temperature control accuracy (±1°C) with high-quality instrument capable of issuing third-party inspection certificates.
- Good furnace temperature uniformity with balanced temperature field and no dead angles inside the furnace cavity.
- Microcomputer programmable temperature control with adjustable heating rate and automatic operation.
- Double-layer shell with air convection heat insulation layer and elegant two-color sprayed exterior.
- Excellent cost performance, complete after-sales service, 1-year warranty and lifetime maintenance.
Additional Configuration
- Through independently developed control software, the electric furnace can be connected with a computer to achieve remote control of single or multiple furnaces. Functions include starting and stopping the furnace, setting temperature programs, storing programs, viewing historical curves, and printing records.
- The mixing system in the crucible ensures uniform material melting and improves product quality.
- One-button automatic discharging system improves convenience and safety while increasing working efficiency.
Furnace Size
| Crucible Size (L) | Voltage (V) | Power (kW) | Temp Control Accuracy |
| 0.9 | 220 | 4 | ±1°C |
| 1.6 | 380 | 10 | ±1°C |
| 3 | 380 | 12 | ±1°C |
| 5 | 380 | 14 | ±1°C |
| 15 | 380 | 18 | ±1°C |
| 30 | 380 | 25 | ±1°C |
Temperature Range:
800°C • 1000°C • 1200°C • 1400°C • 1600°C • 1700°C • 1800°C • 2200°C
Notes
- Chamber size and temperature can be customized according to customer needs
- Control system: computer control, touch screen control, micro-computer control optional
- Crucible lifting: electric lift or manual lift optional
The product list

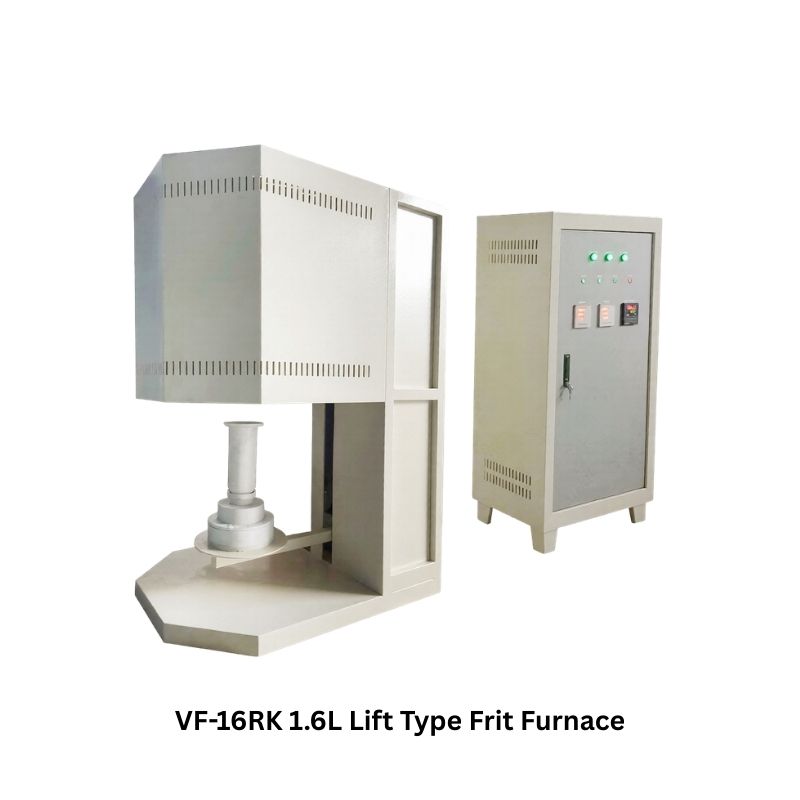

VF-16RK 1.6L Lift Type Frit Furnace

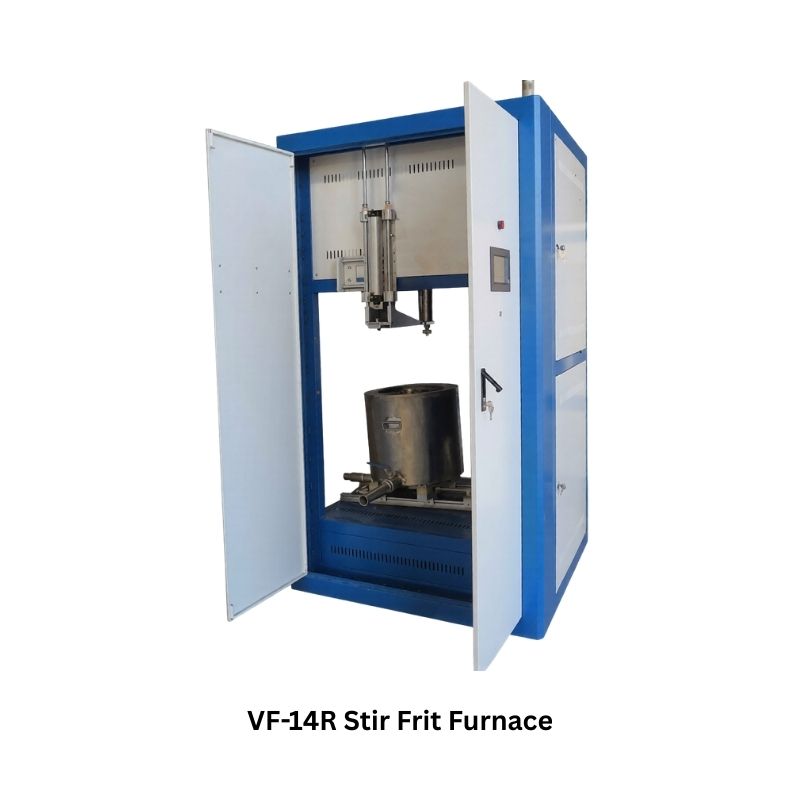

VF-14R Stir Frit Furnace
VF-17R Automatic Crush Frit Furnace

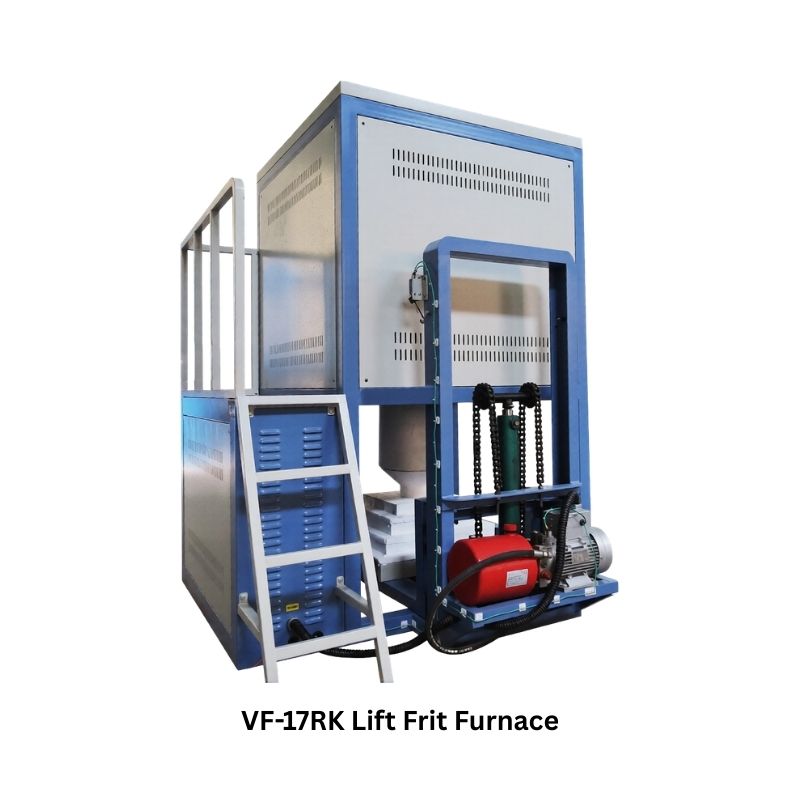

VF-17RK Lift Frit Furnace
VF-16R High Temperature Frit Furnace
