Additional information
| Brand | Essom |
|---|

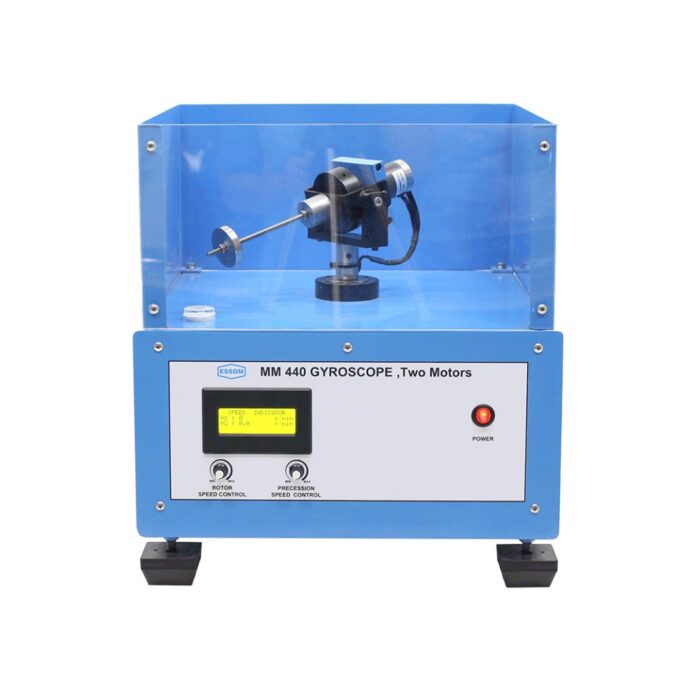

Gyroscope, Two Motors
The apparatus is used for studying relationship between gyroscopic torque, rotor speed and rate of precession.
The equipment consists of a steel rotor with a small motor, counter weight, precession motor, and instruments for measurement of speeds and counter weight distance. The rotor is mounted horizontally on a frame with two bearing supports. The frame has a horizontal screw for installation of counter weight to provide a torque. The frame rests on a vertical shaft driven by the precession motor via a belt. A guard with transparent front is provided for safety.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Gyroscope torque vs processional speed.
- Rotor speed vs gyroscope torque.
- Determination of systems moment of inertia and nutation study.
TECHNICAL DATA
| Rotor motor | DC motor |
| Rotor speed | Up to 4000 rpm |
| Precession motor | DC geared motor |
| Precession speed | Up to 60 rpm |
| Speeds | Rotor and precession. |
| Balancing weights | 1 lot |
| Steel ruler | 1 ea. |
| Power supply | 220V, 1 Ph, 50 Hz. Other power supply is available on request. |
