Additional information
| Brand | Essom |
|---|

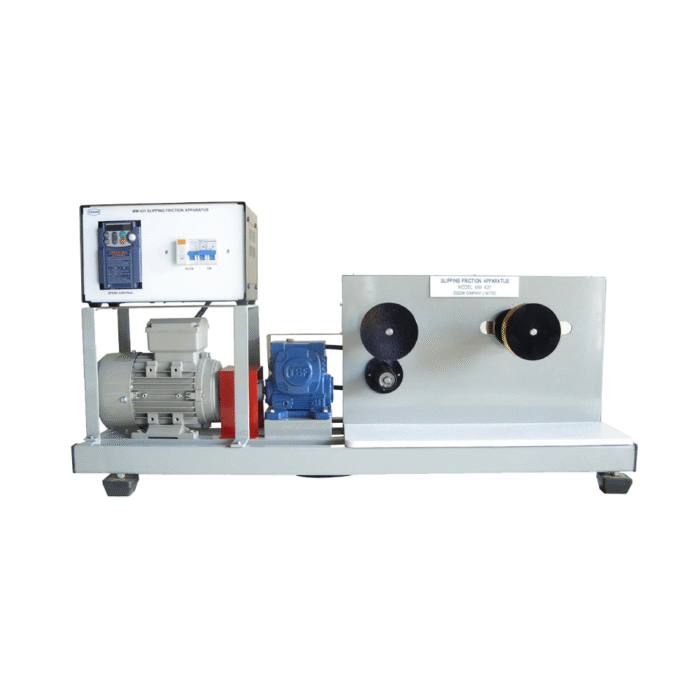

Slipping Friction Apparatus
This is a bench top apparatus for determination of sliding friction coefficient using an oscillating bar.
A round bar is placed on two counter turning pulleys driven by a variable speed motor with gear reducer. The distance between the two pulleys is adjustable. Measuring instruments for pulley speed and oscillation period are provided.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Coefficient of friction vs speed for different types and sizes of materials
TECHNICAL DATA
| Wheel center distance | Adjustable 200-350 mm |
| Motor | 0.18 kW |
| Speed control | Inverter |
| Measuring Instruments | |
| – Pulley speed | Portable tachometer |
| – Oscillation speed | Mental count with stop watch. |
| Specimens, 600mm long | |
| – Solid bar | |
| – Hollow tube | |
| Software for data display and analysis by computer (separately supplied) | |
| Power supply | 220V, 1Ph, 50 Hz. Other power supply is available on request. |
