Pressure Control Trainer
The PCT-M3 Pressure control trainer system enables the study of the principles in pressure control and monitoring in a pressurised system. The system is self-contained and only requires connection to a PC through a USB. The control module is contained on the unit and has a mimic of the systems and LED indication. The PCT-M3 can be controlled through the graphical based software supplied with the unit providing PID control.
The PCT-M3 Pressure control trainer system enables the study of the principles in pressure control and monitoring in a pressurised system. The system is self-contained and only requires connection to a PC through a USB. The control module is contained on the unit and has a mimic of the systems and LED indication. The PCT-M3 can be controlled through the graphical based software supplied with the unit providing PID control.

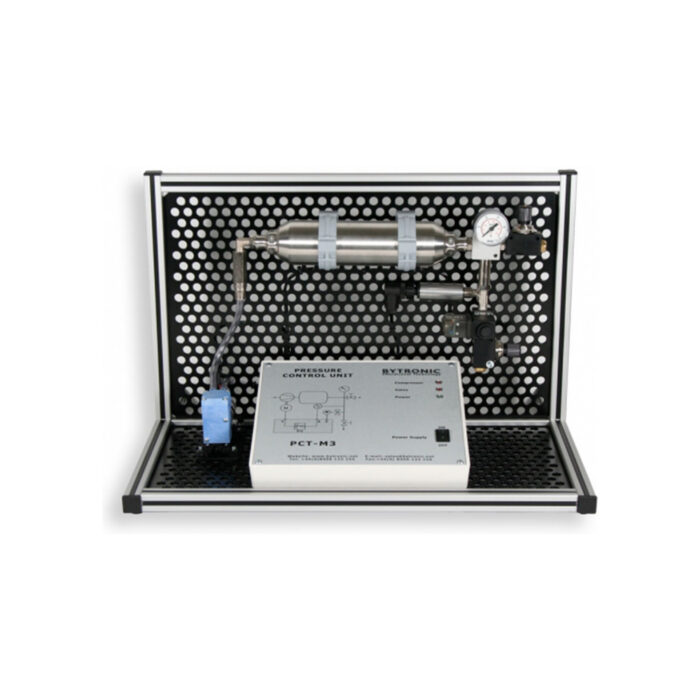

The systems comprises a compressor connected to a reservoir tank, a regulator valve, a pressure sensor, a needle valve to add a disturbance and a pressure gauge to indicate the pressure in the system. The built in compressor provides for a safe working environment and removes the need for connection to an airline or additional compressor.
Key Features
- Control and measurement of pressure
- PID control PC SCADA type software with control and data monitoring
- Complete self-contained unit
- Connection to PC through USB
- Air used for the process
- Gauge pressure sensor
- Manual valve to generate disturbances
- Safe low pressure operation
| Brand | Bytronic |
|---|
