Sectioned Diesel Engine Trainer

Sectioned Diesel Engine

Our sectioned 4-cylinder diesel engine trainer allows students to study the internal workings of a combustion engine. The engine is rotated via a handle to demonstrate the internal rotation of the 4-cylinder diesel components.

Colour Coded Components:

Air Induction
Engine Oil
Exhaust Gases
Oil Pressure
Fuel System

Components Included:

Alternator
Cooling System
Cylinder head and valves
Cylinders
Pistons
Oil System
Diesel Injection System

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
SKU: SDE-Bytronic Category: Tags: , , ,
100% Original and quality

Additional information

Brand

Bytronic

Related products

  • labts.co.id thermodynamics engine test bed single cylinder
    • labts.co.id thermodynamics engine test bed single cylinder
    • labts.co.id thermodynamics engine test bed single cylinder
    • labts.co.id thermodynamics engine test bed single cylinder
    Automotive

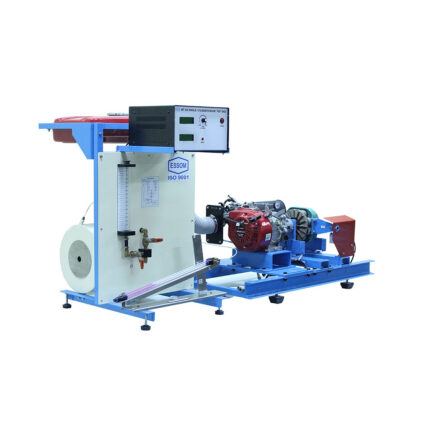

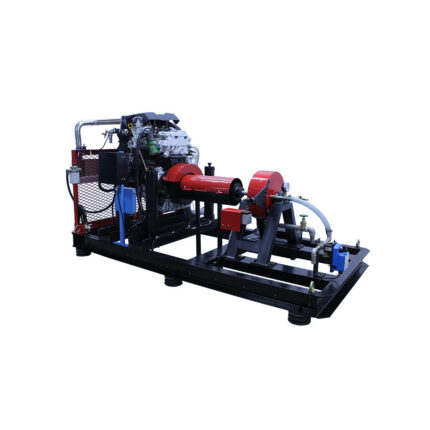

    Single Cylinder Gasoline Engine Test Bed: Computer Control

    This is a test bed for a single cylinder gasoline engine with computer control.

    The engine is connected to a dynamometer on the test bed by a coupling with a safety guard. A fuel tank with a fuel flow and an air flow measuring instruments are on a stand next to the engine.

    Data display, analysis, and control are by computer (separately supplied).

    The dynamometer requires outside water supply for cooling.

    Instruction manual is also included.

    TYPICAL EXPERIMENTS
    • Torque vs engine speed at various throttle setting.
    • Engine brake horsepower and efficiency vs speed
    • Specific fuel consumption
    • Air/fuel ratio
    • Volumetric efficiency
    TECHNICAL DATA
    Dynamometer
     – Type Water brake absorber.
     – Maximum Torque At 2500 rpm. over 110 Nm.
     – Maximum Speed 8000 rpm.
    Engine Gasoline engine 3.7 kW, or as required.
    Sensors with digital display
    • Dynamometer torque
    • Engine speed
    • Fuel flow rate
    • Differential pressure for air box with pulse reducer and orifice plate for measuring air flow rate
    • Temperature for absorber water outlet, ambient air, and exhaust gas
    Control Engine throttle and dynamometer load.
    Computer interface unit and software for data display, analysis, and control by computer (separately supplied).
    Power supply 220V 1 Ph 50 Hz. Other power supply is available on request.
    (0 reviews)
  • CRDI Diesel Engine Power Train System engine test bed labts.co.id
    Automotive

    CRDI Diesel Engine Power Train System

    The CRDI Diesel Engine Power Train System can be supplied in automatic or manual. The trainer teaches students how to adjust and replace the braking lining and pads. How to replace the oil filter, various belts. Belt tension control shock absorber and spring. The students can practise and learn to how replace the tyre and detach or inspect fuel pump.

    Specification

    Manual Engine consists of: Diesel Engine Assay, Manual Transmission ASSY, 1 set of Lighting, Brake system, Steering system, Shock Absorber, Driveshaft, Front Axle, Fuel Tank, Change Lever, Battery, Intake/Exhaust system

    Automatic Engine consists of: 2,900cc Class Diesel F/R Engine ASSY, Automatic Transmission ASSY, 1 set of Lighting, Brake system, Steering system. Driveshaft, Front Axle, Fuel Tank, Change Lever, Battery, Intake/Exhaust system, Safety Break, Controller

    Size : Appox. 3,000 X 2,000 X 1,300 mm

    Weight : Approx. 450 kg

    Key Features

    • Educational Model for operating F/R Type Manual or automatic Transmission CRDI and Power Train System Structure of Diesel Engine Vehicle.
    • Teaches power train systems and its operation principles.
    • Colour coded sections for education efficiency.
    • AC 220V motor operation
    (0 reviews)
