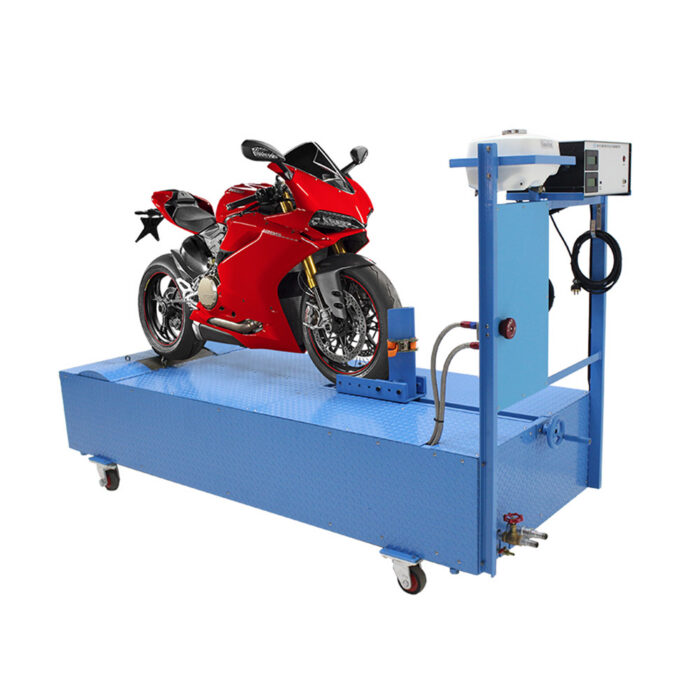

Motor Cycle Dynamometer: Computer Interface

This is a floor mount chassis type dynamometer for testing motor cycle.

It consists of a platform on a steel frame, a medium inertia roll with traction grooves, a dynamometer with step up drive, an adjustable wheel base front mount, a roll on ramp and tie downs. Manual control for both dynamometer load and engine throttle.

Instruments are provided for measurement of vehicle speed, dynamometer speed and torque, fuel flow rate and temperature.

The dynamometer requires outside water supply for cooling.

Instruction manual is also included.

TYPICAL EXPERIMENTS

Power and efficiency vs vehicle speed at a throttle position.

TECHNICAL DATA

Roll	Steel.
Dynamometer
– Type	Water brake absorber.
– Maximum Torque	At 1600 rpm. over 50 Nm. At 2500 rpm. over 110 Nm. At 4000 rpm. over 100 Nm.
– Maximum Speed	8000 rpm.
Wheel base adjustment	Wheel clamp with front screw adjustment.
Maximum vehicle speed	240 kph.
Measuring instruments
– Sensors with digital display	Torque Vehicle and dynamometer speed Temperature of dynamometer water outlet and exhaust gas.
Software for data display and analysis by computer (separately supplied).
Power supply	220 V, 1 Ph, 50 Hz. Other power supply is available on request.
