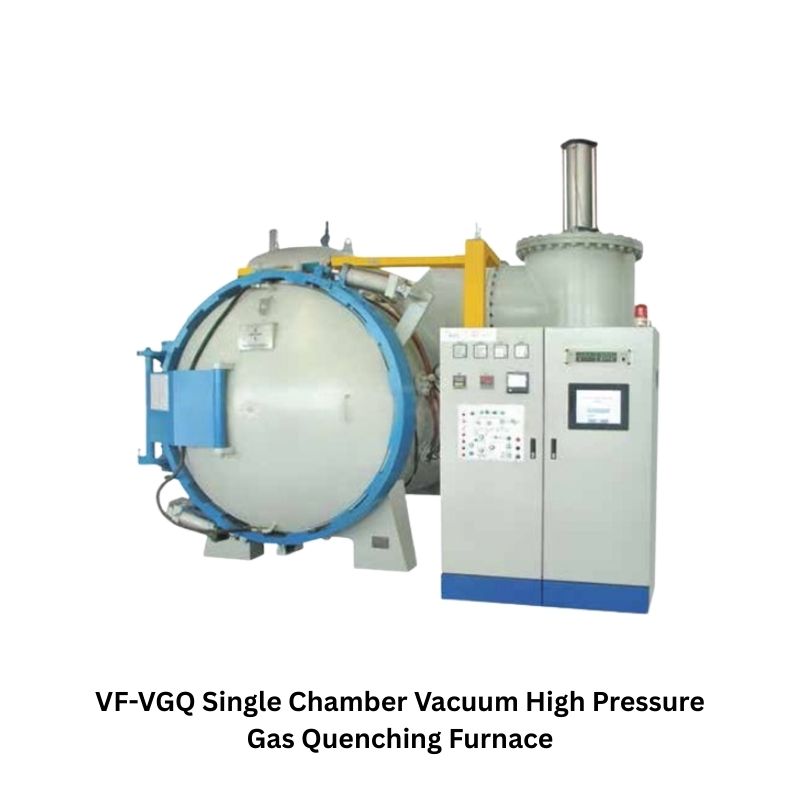

VF-VGQ Single Chamber Vacuum High Pressure Gas Quenching Furnace

VGQ vacuum gas quenching furnace delivers uniform heating and high-pressure gas cooling for advanced industrial heat treatment.

MAIN PURPOSE

The VGQ model is designed for bright gas quenching of alloy structural steel, tool steel, mold steel, and other specialized alloys. It supports vacuum tempering, annealing, sintering, and selective brazing, making it ideal for aerospace, automotive, and precision tool industries requiring advanced heat treatment performance.

TECHNICAL CHARACTERISTICS

Advanced Heating Elements made of high-purity graphite or molybdenum for uniform temperature distribution
Superior Insulation with graphite hard felt or composite materials to reduce heat loss and improve efficiency
High-Purity Cooling Medium using rapid nitrogen or argon gas cooling
Compact Automated Design with integrated control system for efficient operation
Comprehensive Safety Features including diagnostics, alarms, and protection systems
Flexible Configurations with adjustable effective area sizes

MAIN ADVANTAGES

Diverse Material Compatibility for high-alloy and sensitive materials
Energy Efficient operation reducing operational costs
Enhanced Product Quality with superior treatment uniformity
Operational Versatility for multiple heat treatment processes
User-Friendly Interface with automated control system
Robust Industrial Design ensuring durability and long-term reliability

ADDITIONAL CONFIGURATION

Optional Low-Temperature Convection Heating
Optional High Vacuum Capability
Customizable Chamber Size
Advanced Control Systems with precision monitoring

FURNACE SIZE

Model	Valid Zone (mm)	Maximum Temp (°C)	Heating Power (Kw)	Ultimate Vacuum (Pa)	Gas Cooling Pressure (Bar)
VGQ-40	450×300×300	1320	40	5×10⁻³ or 4×10⁻¹	10
VGQ-80	600×400×400	1320	80	5×10⁻³ or 4×10⁻¹	10
VGQ-120	700×500×500	1320	120	5×10⁻³ or 4×10⁻¹	10
VGQ-150	900×600×600	1320	150	5×10⁻³ or 4×10⁻¹	10
VGQ-300	1500×800×800	1320	300	5×10⁻³ or 4×10⁻¹	10
