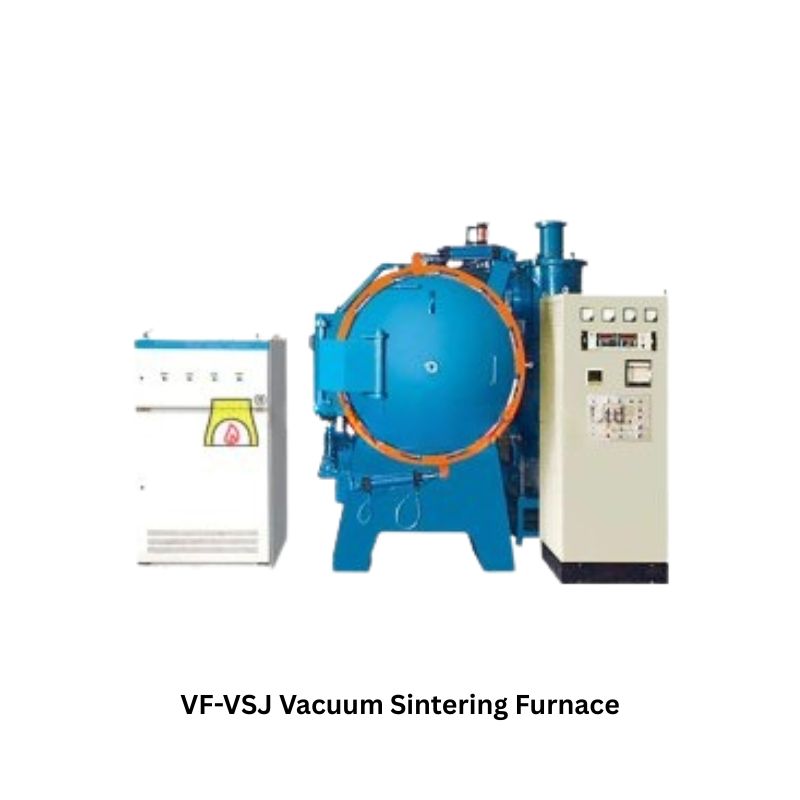

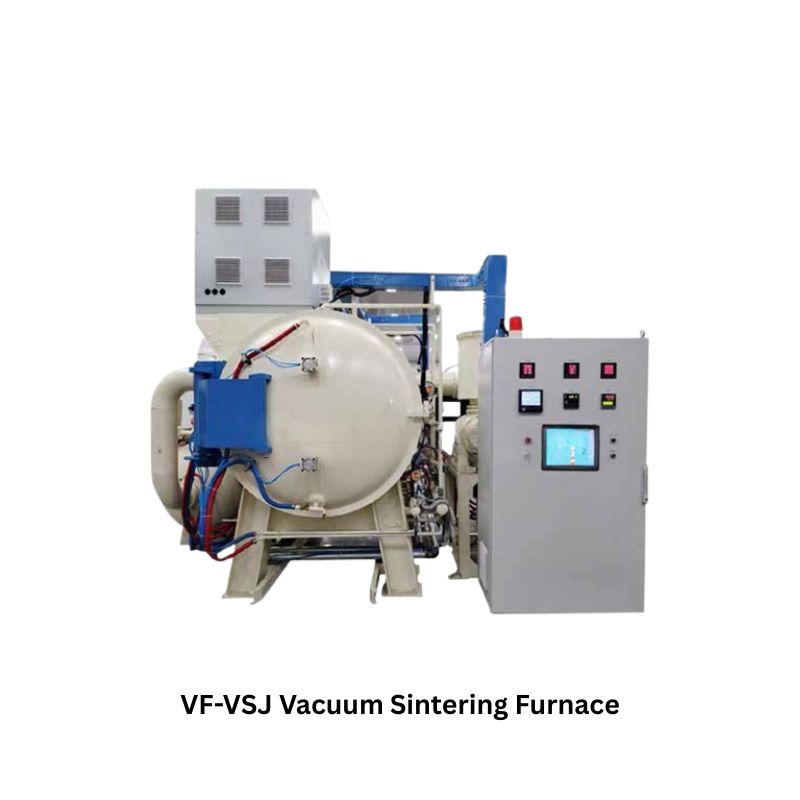

VF-VSJ Vacuum Sintering Furnace
VSJ vacuum sintering furnace delivers precise temperature control, uniform heating and controlled cooling for advanced powder metallurgy and ceramic processing.
Description
MAIN PURPOSE
The VSJ Vacuum Sintering Furnace is engineered for the vacuum sintering of a broad range of materials, including cemented carbide, ceramic materials, powder injection molding parts, magnetic materials, porous materials, and other powder metallurgy components. It is particularly suited for industries requiring high precision and quality in material fabrication, such as aerospace, automotive, medical devices, and tool manufacturing.
TECHNICAL CHARACTERISTICS
- Optimized Heating Elements: With high-purity graphite or molybdenum elements, the VSJ furnace achieves uniform heating, critical for sintering quality and performance
- Superior Insulation: Incorporating graphite hard felt or molybdenum-stainless steel structure, it minimizes heat loss and improves efficiency
- Advanced Cooling: High-purity nitrogen or argon ensures controlled cooling essential for maintaining material properties
- Compact Automation: Design meets environmental standards with automation that simplifies operation and enhances efficiency
- Enhanced Safety: Self-diagnosis and alarms combined with comprehensive protection system
- Precision Temperature Control: Sophisticated system guarantees uniform temperatures for consistent sintering outcomes
MAIN ADVANTAGES
- Versatile Material Processing for a wide range of materials across manufacturing sectors
- Enhanced Material Properties through superior sintering outcomes
- Energy Efficient design reduces operational costs
- High-Quality Standards ensuring reliability and excellence
- User-Friendly Operation with high automation level
- Customizable Solutions including dewaxing system and effective area size options
ADDITIONAL CONFIGURATION
- Dewaxing System Option for materials requiring wax removal
- Customizable Effective Area Size
- Optional Vertical Bottom Loading Structure for heavy or complex parts
- Automated Control System with programmable settings and real-time monitoring
FURNACE SIZE
| Model | Valid Zone (mm) | Maximum Temp (°C) | Heating Power (Kw) | Ultimate Vacuum (Pa) | Gas Cooling Pressure (Bar) |
| VSJ-63 | 300×200×200 | 1600 | 63 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VSJ-80 | 450×300×300 | 1600 | 80 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VSJ-120 | 600×400×400 | 1600 | 120 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VSJ-150 | 700×500×500 | 1600 | 150 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VSJ-200 | 900×600×600 | 1600 | 200 | 5×10⁻³ or 4×10⁻¹ | 2 |
| VSJ-300 | 1200×600×600 | 1320 | 200 | 5×10⁻³ or 4×10⁻¹ | 2 |
Chamber size and temperature according to customer requirements.
Control System Options: Computer control / Touch screen control / Micro-computer control
