Wave Gauge System – 8 Channels

The wave gauge system is a simple and reliable device for measuring rapidly changing water levels in physical models. When combined with our HR DAQ data acquisition and analysis software it provides a first rate method of measuring wave height in a flume or 3D basin.

Our wave gauge system is suitable for use in:

2D flume
For this configuration, the wave probes are supplied with a mounting block allowing the calibration stem, that is fixed to the wave probe head, to be attached to any vertical surface.

3D wave basin
For basins, we have a selection of tripods for using 600 to 1200 mm wave probes. For shallow water up to 1 m depth, a smaller stand to fit 300 mm wave probes is available.

Product features:

Extremely linear output
No hysterisis
Reliable, proven design
Easily calibrated
Longer distances from the data acquisition PC can be achieved by linking two wave probe cases together
Multiple wave probe cases can be used in the digital network to meet the desired number of wave probe channels
Data can be logged directly into a computer via the network link and analysed using HR DAQ software.

Our wave gauge system includes:

hr wallingford wave gauge system includes accessories

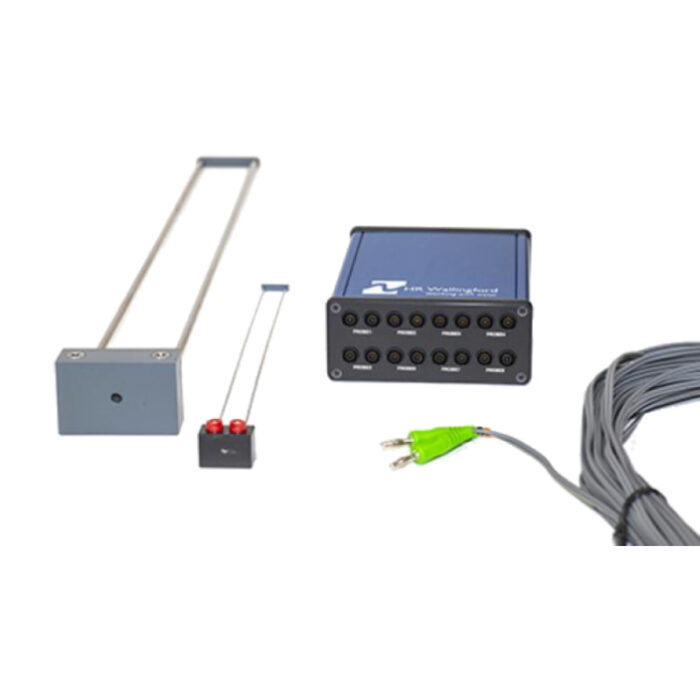

Wave probes

Each wave probe comprises two parallel stainless steel rods, each with a plastic head and foot. The wave probes operate by measuring the current that flows between the two rods immersed in water. This current is converted to an output voltage that is directly proportional to the immersed depth. The standard probe lengths are 300, 600 and 900 mm.

hr wallingford wave probe spesification

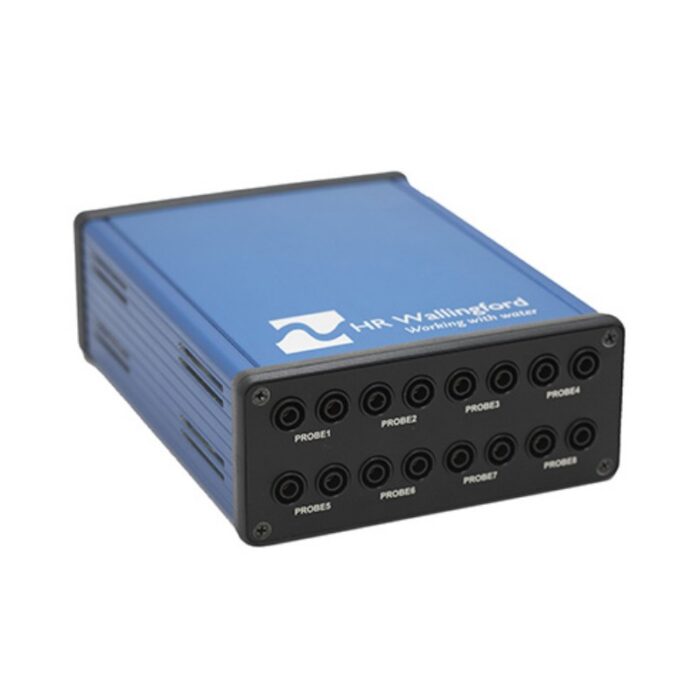

Wave probe case

A wave probe case is supplied to accommodate up to eight monitors. This case contains all the necessary signal conditioning, together with an inbuilt analogue-to-digital output that allows the data to be saved directly to a data acquisition PC.

The case is supplied with its own standard plug and power supply for the modules.

If you need to use more than eight probes at the same time, then multiple cases can be linked together so requiring only one computer for configuration.

hr wallingford wave probe case spesification

HR DAQ software

Our wave gauge system can be connected to a computer to collect data. This data can also be analysed using HR DAQ for analysis +/- 10V dc analogue output available for use with other data acquisition systems.
