Additional information
| Brand | Bytronic |
|---|

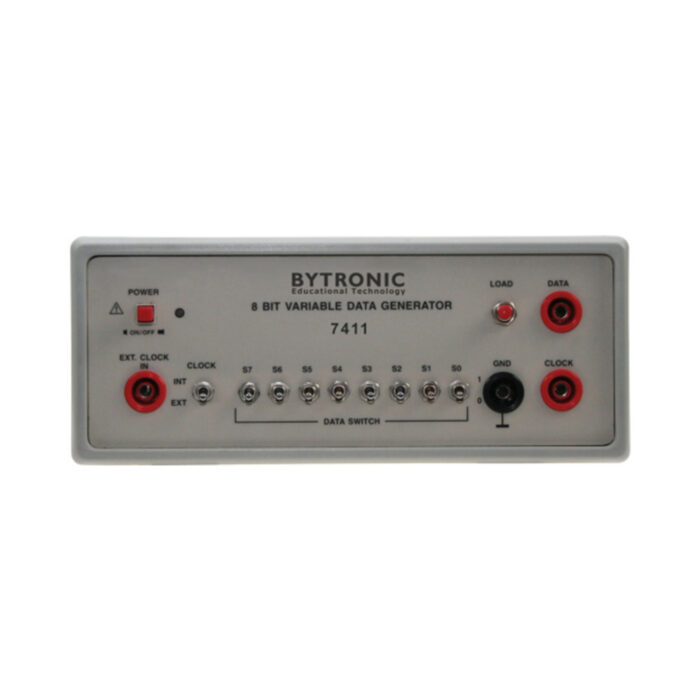

8-Bit Binary Data Generator
The 7411 can be used with the 7406 and the 7407 as a data input generator. The 7411 can also used as an 8-bit variable TTL data generator independently. The 7411 can produce an external clock (TTL) up to 1MHz that is available from at the clock out socket on the front of the unit. Normally it operates on an internal 240KHz clock.
Key Features
- Continuous data output (8-bit variable)
- Clock Output
- Compact and Light
