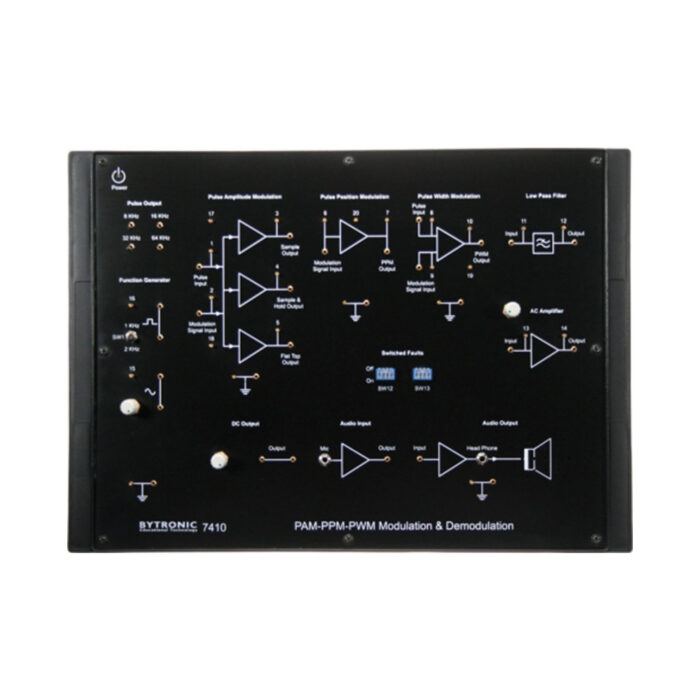

PAM-PPM-PWM Modulation/Demodulation Trainer
The Bytronic 7410 PAM-PPM-PWM pulse modulation/demodulation trainer can be used to study Sampling, Pulse Modulation, Demodulation and Signal reconstruction processes. Separate circuits are provided for each technique.
Experiments
- Pulse Amplitude Modulation using natural and flat top sampling
- PAM using sample and hold sampling
- Pulse Amplitude Modulation and Demodulation with sample, sample and hold and flat top
- PPM using DC input
- PPM using sine wave input
- PPM demodulation
- PWM using different sampling frequency
- Pulse Width Demodulation
- Voice link using Pulse Amplitude Modulation
- Voice link using Pulse Position Modulation
Key Features
- PAM-PPM-PWM Modulation & Demodulation techniques, using Natural & Flat-top sampling
- Analog Sample, Sample & Hold and Flat-top outputs
- Selectable 4 different sampling pulse frequencies on board
- Voice Communication using dynamic microphone & speaker
- On-board Filter and AC Amplifier
- 8 Switched Faults
