Automotive Gear System Efficiency, Manual Transmission (Computer interface)

Automotive gear system apparatus for studying manual transmission efficiency under varying gear ratios and speeds with computer interface support.

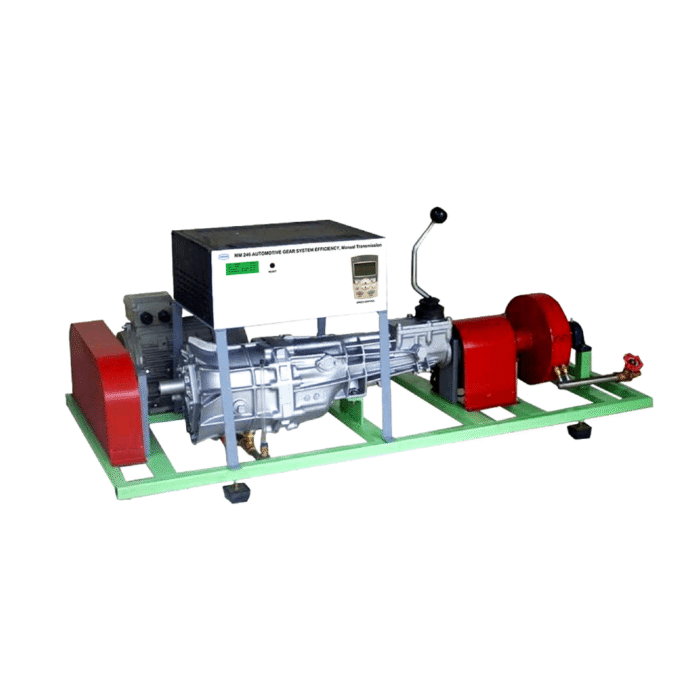

Automotive Gear System Efficiency, Manual Transmission (Computer interface). The apparatus is table top unit for studying an automotive gear system efficiency under different gear ratios and speeds.

The system uses a manual automotive gear. The input shaft is driven a motor dynamometer via a belt and pulleys. Speed is controlled by an inverter. The output shaft is attached to a water brake absorber dynamometer. The dynamometer requires outside water supply.

Instruction manual is also included.

TYPICAL EXPERIMENTS

Input power, output power and efficiency.
Effect of speed and load on efficiency.

TECHNICAL DATA

Gear box	Good used 5 speeds manual automotive gear
Speed control	4.0 kW inverter
Maximum shaft input speed	6000 rpm
Measuring instruments
– Torques	Digital display for input and output shafts of the gear
– Speeds	Digital display for input and output shafts of the gear
Software for data display and analysis by computer (separately supplied).
Power supply	380 V, 3 Ph, 50 Hz. Other power supply is available on request.
