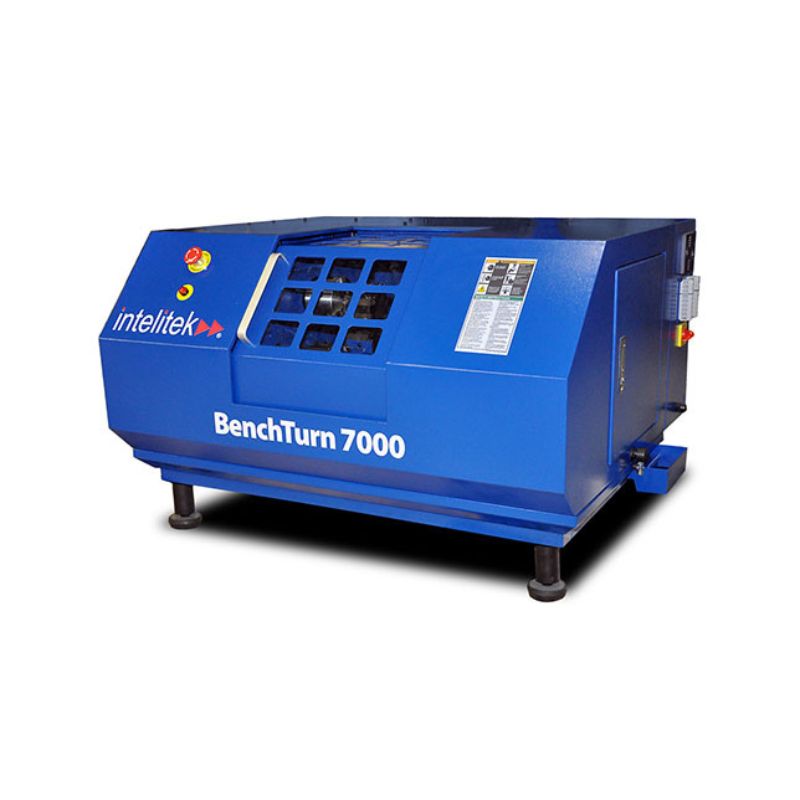

BenchTurn 7×00 CNC Turning Center
CNC Turning Technology introduces students to the fundamentals of CNC (Computer Numerical Control) turning by means of hands on activities with the BenchTurn 7×00. Students learn the fundamentals of CNC working with quality equipment to accurately produce parts. Students observe and experience CNC’s superiority over time-consuming, less accurate, manually controlled machine tools.
CNC Turning Technology introduces students to the fundamentals of CNC (Computer Numerical Control) turning by means of hands on activities with the BenchTurn 7×00.
Students learn the fundamentals of CNC working with quality equipment to accurately produce parts. Students observe and experience CNC’s superiority over time-consuming, less accurate, manually controlled machine tools.
Activities challenge students to develop and edit programs, and make the parts on the machine. Students gain hands-on experience in proper set up, cutting tools selection, tool path simulation and turning center operation. Students design solutions for industrial CNC applications with an emphasis on real industrial concerns, such as optimized programming, accuracy and increased productivity.
The machine features an intuitive software interface and conforms to industrial EIA, ISO, Fanuc and G&M code standards.
CNC Turning Technology with the BenchTurn 7×00 is also available in Virtual format!
With a fully simulated machine, students learn the same skills as the Lab version via interactive online activities. Choose between Lab and Virtual courses based on your program objectives and budget, or implement both together for a truly scalable program!
Components
E-Learning Content: CNC Turning Technology with the BenchTurn 7×00 – Lab
Bundle includes:
-
- 77-3148-0000 LearnMate Content (Requires LMS Add On)
- 00-5504-0110 BenchTurn 7×00
- 10-1105-7000 Tailstock Chuck MT2 Taper 0- 1/2″ (13mm)
- 10-1110-1000 7 Piece Turning Tool Set with Inserts 10 mm x 10 mm
- 10-1110-2000 7 Piece Insert Replacement Set
- 10-1106-6000 Rolling Center Tailstock MT2
Course Outline
Activity 1: Introduction and Safety
Activity 2: CNCBase Control Software
Activity 3: Mounting the Workpiece
Activity 4: Tooling
Activity 5: Reference Positions
Activity 6: Verifying a Program
Activity 7: Running a Program
Activity 8: Fundamentals of NC Programming
Activity 9: Programming the House
Activity 10: Machining Project #1
Activity 11: Arc Programming
Activity 12: Programming the Star – Project #2
Activity 13: Machining Project #2
Activity 14: Programming Your Initials – Project #3
Activity 15: Final Project
Specifications
Axis Travel
X Axis, max 75 mm 2.96”
Z Axis 250 mm 9.84”
Work Area
Swing over bed 200 mm 7.87”
Swing over cross slide 100 mm 3.94”
Max dist. between centers 360 mm 14.17”
Bed width 100 mm 3.94”
Spindle
Motor Type Brushless
Motor power 500 W / 0.67 HP
Spindle speed 100-3000 RPM
Spindle taper MT3
Tooling
Automatic tool position 4
Tool post angle 360 deg.
Tailstock taper MT2
Tailstock travel 50 mm 1.97”
Accuracy
Position accuracy 0.015 mm 0.0006”
Repeatability 0.010 mm 0.0004”
Dimensions
Machine size
Width 1093 mm 43.00”
Depth 864 mm 34.00”
Height 565 mm 22.25”
Weight (approximate)
Machine weight 170 Kg 353 lbs
Axis Drive Motors
Axis motor type Stepper
X axis 1.35 N-m 192 oz-in
Z axis 1.35 N-m 192 oz-in
Rapid feed rate 2000 mm/min 79 ipm
Feed rate 500 mm/min 20 ipm
Air Supply (Only required for optional pneumatic accessories)
620 kPa (90 psi)
1/4” NPT female connection provided
Control Software
EIA RS274-D standard G & M code compatible
FANUC® compatible
CAD/CAM compatible
Power Requirements
United States 115 VAC (+5%/-10%) 60 Hz, 20A
International 230 VAC (+5%/-10%) 50 Hz, 8A
Materials required
Table
A table or bench capable of supporting 400 lbs.
