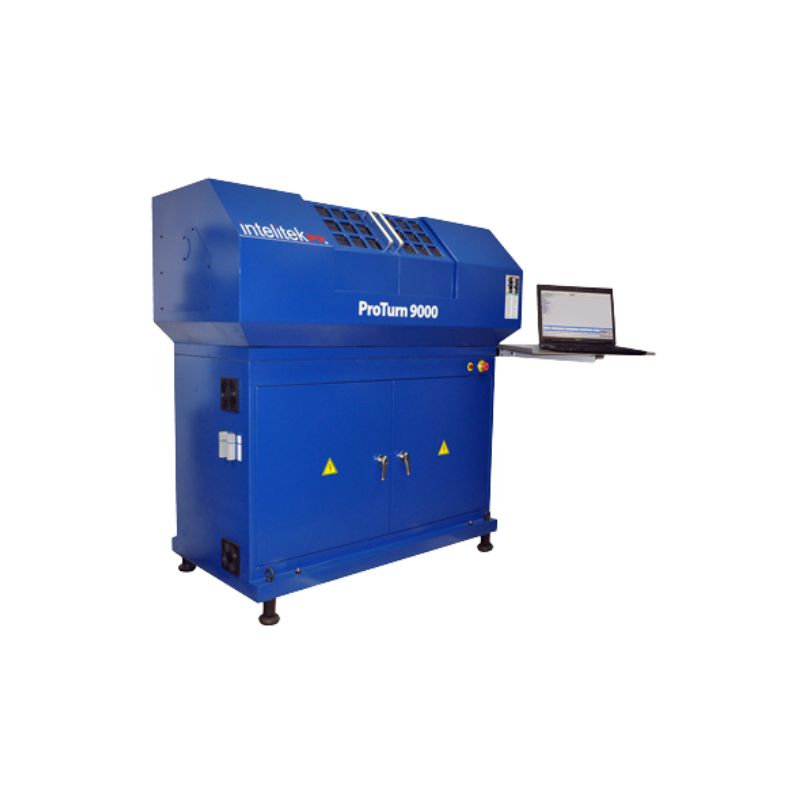

ProTurn 9000 CNC Turning Center
The ProTurn 9000 is a versatile PC-based CNC turning center that enables you to deliver robust instruction in computer numerical control and advanced manufacturing.
The ProTurn 9000 CNC Turning Center requires no assembly, arriving at your facility ready to run on an Ethernet port on a standard PC. The system uses powerful AC drive motors on the spindle and both axes for cutting a variety of materials. Like larger industrial machines, the ProTurn 9000 AC uses EIA, ISO, and Fanuc-compatible G&M code programs.
Intelitek’s CNCBase® control software is easy to learn. The user-friendly control software supports linear, circular, and helical interpolation, multiple tool programming, and canned cycles. This standard software gives users the ability to write and edit standard G&M code programs and view the simulated machining operation on-screen before cutting.
With available supplements like CNCMotion® full 3-D virtual simulation software, Fanuc™ control software and Intelitek’s LearnMate® e-learning curriculum specific to the machine, the ProTurn 9000 is the perfect training solution, with exceptional ease-of-use, safety features and reliability.
Standard Features
-
- Ethernet-based control
- Powerful AC spindle motor
- AC axes motors
- Full enclosure with automatic safety door lock
- Automatic diagnostics and power cut off protection
- PC-based CNC software
- Coolant-ready
- Jog pendant ready
- Robotic integration-ready with 6 inputs, 6 outputs
- No assembly required
Included Accessories
-
- Tailstock
- 4″ 3-jaw chuck with key
- 4-station automatic tool turret
- One shot lubrication system
- Internal work light
- Turning center accessory package:
- (1) Chuck key
- (1) Chuck jaw replacement set
- (1) Wrench set
- (2) Dead centers
- (1) 2M cable
- (1) Storage box
Course Outline:
Activity 1: Introduction and Safety
Activity 2: CNCBase Control Software
Activity 3: Securing the Workpiece
Activity 4: Tooling
Activity 5: Reference Positions
Activity 6: Verifying a Program
Activity 7: Running a Program
Activity 8: Fundamentals of NC Programming
Activity 9: Programming a Taper
Activity 10: Machining Project #1
Activity 11: Arc Programming
Activity 12: Programming Project #2
Activity 13: Machining Project #2
Activity 14: Project #3
Activity 15: Final Project
| Order #005501 | ProTurn 9000 | ||
|---|---|---|---|
| Axis Travel | |||
| X Axis, max | 3.54″ | 90 mm | |
| Z Axis | 12.00″ | 305 mm | |
| Work Area | |||
| Swing over bed | 9.87″ | 250 mm | |
| Swing over cross slide | 5.90″ | 150 mm | |
| Max distance between centers | 17.75″ | 450 mm | |
| Bed width | 5.33″ | 135 mm | |
| Spindle | |||
| Motor Type | Brushless | ||
| Motor power | 1.34 hp, 1000 w | ||
| Spindle speed | 100 – 3000 RPM | ||
| Spindle taper | MT3 | ||
| Tooling | |||
| Automatic tool position | 4 | ||
| Tool post angle | 360 deg. | ||
| Tailstock taper | MT2 | ||
| Tailstock travel | 1.97″ | 50 mm | |
| Accuracy | |||
| Position accuracy | 0.0006″ | 0.015 mm | |
| Repeatability | 0.0004″ | 0.010 mm | |
| Axis Drive Motors | |||
| Axis motor type | AC servo | ||
| X axis | 400w | ||
| Z axis | 400w | ||
| Rapid feed rate | 197 ipm | 5000 mm/min | |
| Feed rate | 100 ipm | 2540 mm/min | |
| Dimensions | |||
| Machine size: | |||
| Width | 57.50″ | 1460 mm | |
| Depth | 30.00″ | 760 mm | |
| Height | 59.00″ | 1500 mm | |
| Shipping size: | |||
| Width | 64.00″ | 1625 mm | |
| Depth | 45.25″ | 1150 mm | |
| Height | 70.50″ | 1790 mm | |
| Weight (approximate) | |||
| Machine weight | 1080 lbs | 490 Kg | |
| Shipping weight | 1257 lbs | 570 Kg | |
| Power Requirements | |||
| United States | 115 VAC (+5%/-10%) | ||
| 60 Hz, 20A | |||
| International | 230 VAC (+5%/-10%) | ||
| 50 Hz, 8A | |||
| Air Supply Requirements | |||
| 90 psi (620 kPa) | |||
| 1/4” NPT female connection provided | |||
Options and Accessories
| Jog pendant – handwheel | Part #011111 |
| 125mm 4-jaw chuck | Part #011059 |
| TiN-coated cutter, 7-pc set, 10mm x 10mm | Part #011101 |
| TiN-coated tip for #011101 | Part #011102 |
| Rolling center, tailstock MT2 | Part #011066 |
| Pneumatic shield opener | Part #010510 |
| Pneumatic chuck | Part #010512 |
| Coolant system | Part #011081 |
| Mounted computer monitor and CPU stand | Part #011055 |
