Compact Centrifugal Pump Test Set – Fixed Speed
Compact Centrifugal Pump Test Set – Fixed Speed is a self-contained bench top unit for studying the centrifugal pump flow rate vs head at a fixed speed.
Description
Compact Centrifugal Pump Test Set – Fixed Speed is a self-contained bench top unit for studying the centrifugal pump flow rate vs head at a fixed speed.

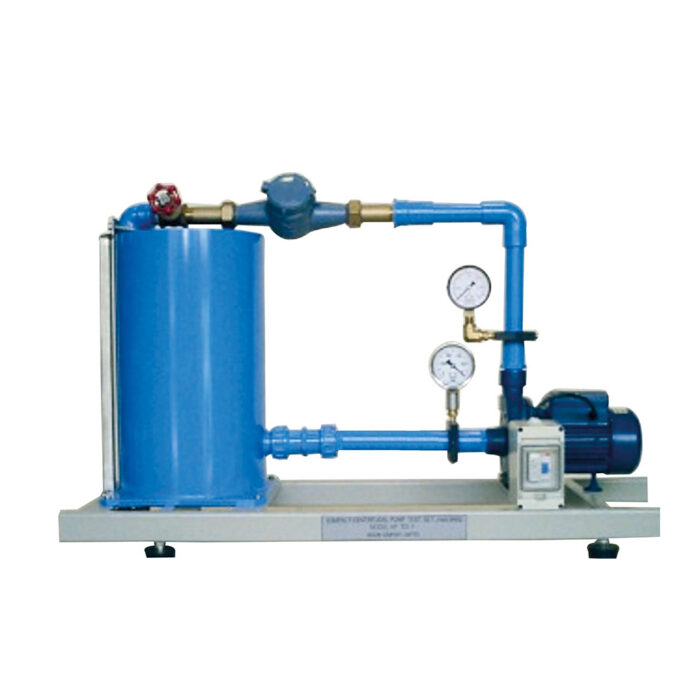

The unit consists of a storage tank and a centrifugal pump with motor on a steel base, and measuring instruments.
Instruction manual is also included.
TYPICAL EXPERIMENTS
Flow rate vs head.
TECHNICAL DATA
| Pump ratings | |
| – Maximum flow rate | 80 Lpm |
| – Maximum head | 18 m water |
| Measuring instruments | |
| – Pressure | Pressure gauges at pump suction and discharge |
| – Flow rate | Water meter and stop watch |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50Hz. Other power supply is available on request. |
Additional information
| Brand | Essom |
|---|
About brand
ESSOM main objectives are to design and manufacture engineering and science laboratory equipment for engineering education predominantly in mechanical and civil engineering.
