Compact Centrifugal Pump Test Set – Motor Dynamometer
This is a self-contained bench top unit for studying the centrifugal pump characteristics.

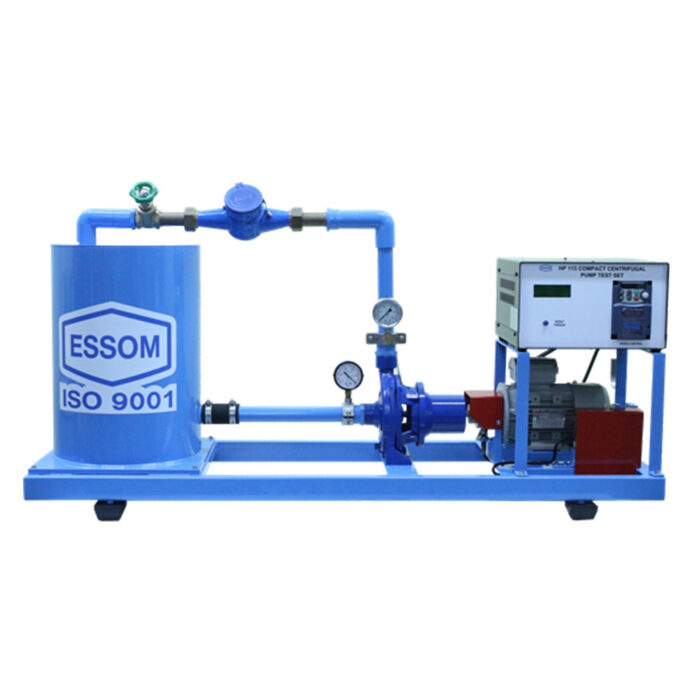

The unit consists of a storage tank and a centrifugal pump with a motor dynamometer on a steel base for measurement of TRUE pump input power and measuring instruments.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Flow rate vs head at various speeds.
- Pump input, output and true efficiency at various speeds.
TECHNICAL DATA
| Pump ratings | |
| – Maximum flow rate | 80 Lpm |
| – Maximum head | 18 m water |
| Measuring instruments | |
| – Flow rate | Water meter and stop watch |
| – Pressure | Pressure gauges at pump suction and discharge |
| – Sensors with digital display for speed and torque | |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220V, 1 Ph, 50 Hz. Other power supply is available on request. |
