Additional information
| Brand | Essom |
|---|

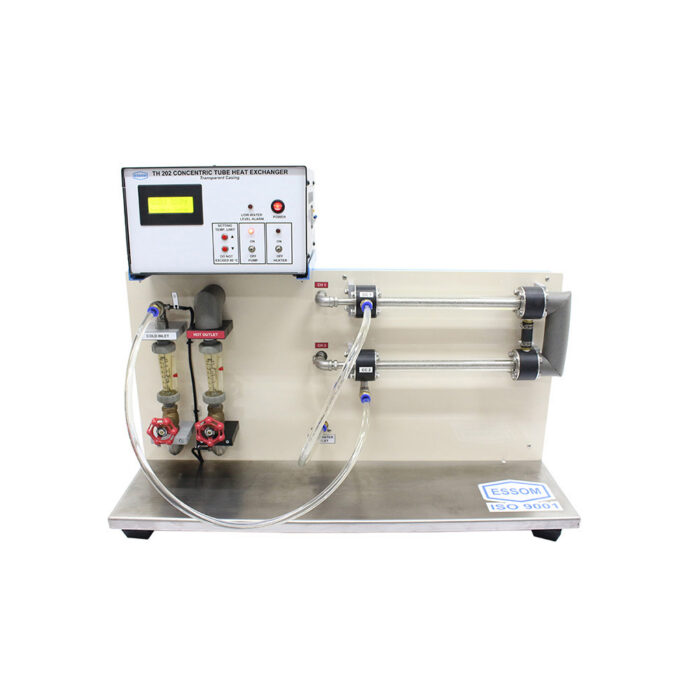

Concentric Tube Heat Exchanger (Transparent Casing)
The apparatus is used for studying the heat transfer through a concentric tube under parallel or counter flow conditions.
The unit consists of a concentric tube heat exchanger, and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Parallel or counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Demonstration of heat transfer under parallel and counter flow.
- Determination of heat transfer coefficient.
- Effects of flow rate and temperature difference.
TECHNICAL DATA
| Construction arrangement | 2 sections of stainless steel inner tube with transparent casing (borosilicate glass) |
| Service module consisting of: | |
| – Hot water pump | |
| – Stainless steel hot water tank with level switch to prevent heater operation if level is too low | |
| – Heater | 3000 W |
| – Flow meters |
|
| Temperature control unit to limit temperature of hot water to not more than 80°C | |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
