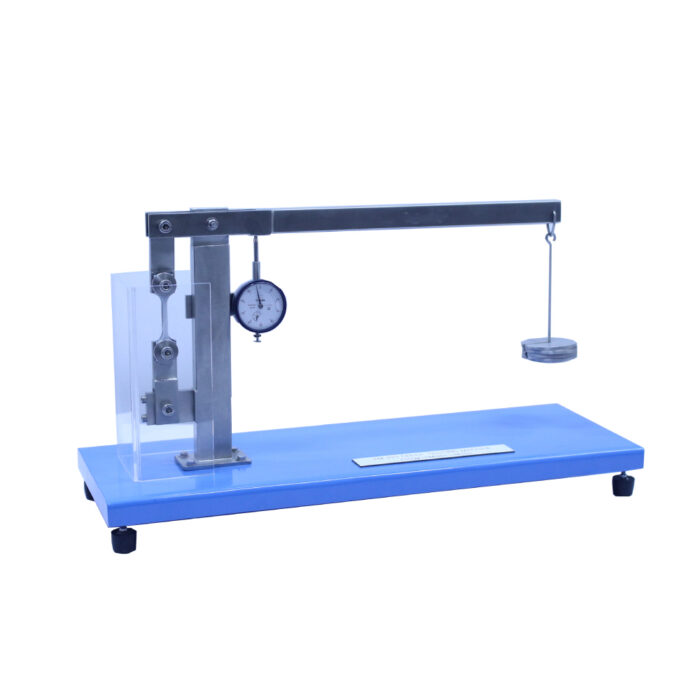

Creep Testing Machine
This equipment is used for testing materials with high creep such as lead and plastics.
A lever is pivoted to a column via ball bearing. Specimen is attached to one end of the lever while load is applied on the other end. Specimen extension is measured by a dial indicator. A glycol pack is provided to wrap the specimen and maintain the required test temperature.
Instruction manual is also included.
TYPICAL EXPERIMENTS
Creep phenomena of materials under different stresses and temperatures.
TECHNICAL DATA
| Lever ratio | 8:1 |
| Specimen enclosure | Clear acrylic |
| Weights | 1 lot. |
| Dial indicator | 10 mm x 0.01 mm graduation. |
| Thermometer | -10 to 50๐C |
| Glycol pack | |
| Software for data display and analysis by computer (separately supplied). | |
