Beam Apparatus

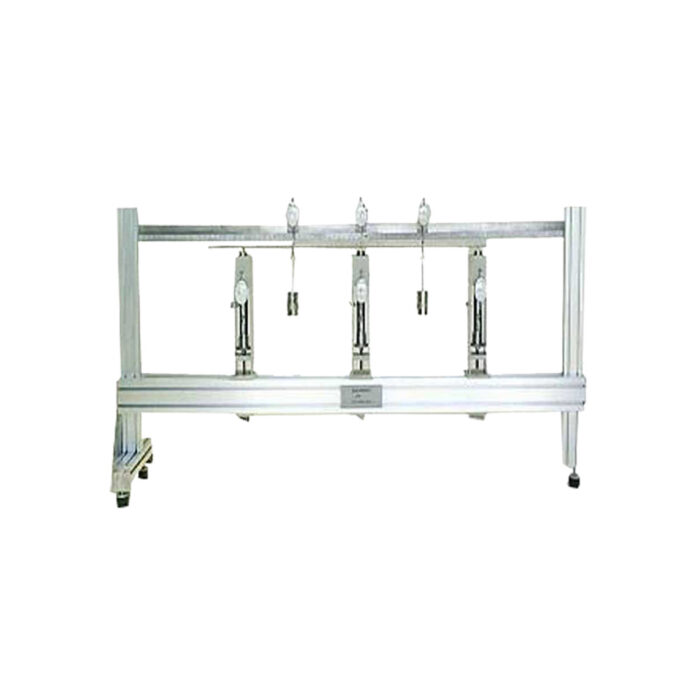

This beam apparatus is of a universal design for use in a wide range of beam experiments with simple, built-in and sinking supports measuring of, point loads, support reactions and beam deflections.
The beam frame consists of a stainless steel angle upper cross member and two aluminum profile lower cross members, bolted to the support columns with footings. Three spring load cells with height adjustment and a cantilever support can slide along the lower members and can be clamped at any point. Dial indicators can slide along the upper member and can be clamped at any point. Linear scale is attached to the upper member to indicate the positions of load cells, loads, supports and dial indicators. Load cell, weight hangers and dial gauges carriers have pointers to indicate their positions on the scale.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Deflection of beams with two supports and various point loads.
- Determination of flexural rigidity and elastic modulus.
- Verification of static equilibrium.
- Verification of the bending equation M/I = E/R
- Beams with sinking supports. Statically indeterminate beam with different loadings and supports.
TECHNICAL DATA
| Supporting frame | Aluminum profile and stainless steel angle 1400 mm. long |
| ST 124 Vertical force spring support | 3 |
| ST 112 Built-in knife edge support | 1 |
| Weight hangers | 4 |
| Weights | 1 lot |
| Beam length | 1200 mm |
| Beam materials | |
| – Mild steel | 3 |
| – Aluminum and brass | 1 |
| Dial indicators | 3x 0-20 mm range, 0.01 mm graduation |
| Software for data display and analysis by computer (separately supplied) | |
100% Original and qualityRelated products
-
Hydraulic Studies and AccessoriesPump Test Apparatus
This equipment is designed to study of centrifugal pump characteristics at various speed. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
The pump with motor is mounted on the Hydraulics Bench which acts as a service module. An advanced inverter controls speed as well as indicating speed and input power. Pump hoses with half unions are used to connect the pump with the Hydraulics Bench. Pressure gauges are installed at pump suction with half union and also at pump discharge. The pump draws water from the Hydraulics Bench storage tank via a suction hose with a strainer and delivers flow to the Hydraulics Bench measuring tank (HB100) or flow digital display (HB100N).
TYPICAL EXPERIMENTSPerformance and characteristics of pump
TECHNICAL DATAPump Maximum flow approximately 80 Lpm. Maximum head approximately 18 m. Speed control Advanced inverter. Pressure gauge Suction. Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50 Hz or as required (0 reviews) -
Air Flow and ThermodynamicsAir Flow Bench
This is a bench top unit for studying the air flow measurement and air flow characteristics in optional apparatus.
The set uses an industrial type centrifugal blower with inlet and outlet ducts, flow straighteners, a damper, various flow measuring devices using manometers for the study of air flow measurement according to BS 848 and 1042, ISO 5167. Various measuring devices for the study of air flow are provided as an option.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Air flow measurement.
- Bernoulli’s experiment (optional)
- Flow around a bend (optional)
- Air flow in pipes (optional)
- Free jet study (optional)
- Air flow drag (optional)
- Boundary layer (optional)
- Flow Visualization (optional)
TECHNICAL DATABlower ratings : – Maximum flow rate (unchoked) 12 m3/min – Maximum head (fully choked) 80 mm water Inlet duct with flow straightener Outlet duct with flow straightener and damper Measuring instruments: – Air flow rate Venturi nozzle, orifice plate, inlet cone, and traveling pitot using inclined water manometer – Differential pressures Twin inclined water manometers., 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1 Accessories Thermometer and barometer Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews)
