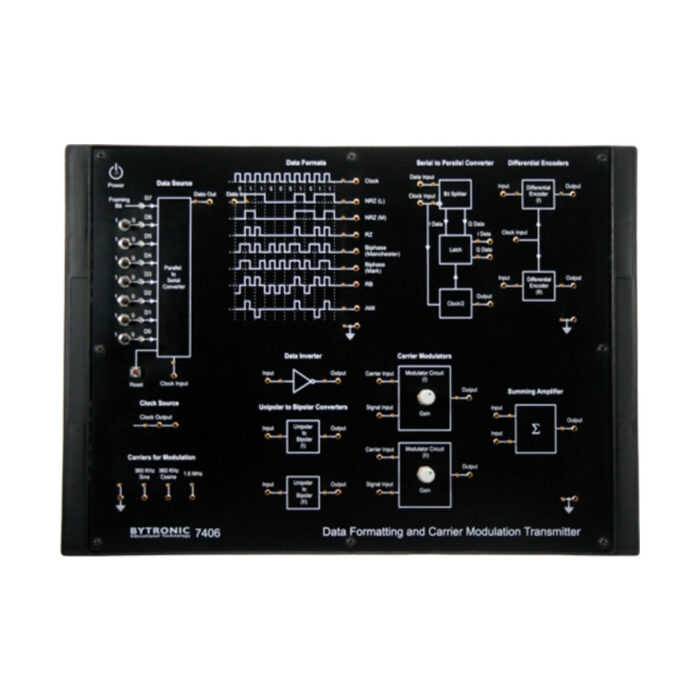

Data Formatting and Carrier Modulation Transmitter
The 7406 data formatting and carrier modulation transmitter trainer is a digital communication system which efficiently explains all communication processing steps involved in digital transmission and reception of analogue signals. Various digital modulation techniques such as ASK, FSK, PSK, DPSK, QPSK etc can be implemented using combinations of the 7406 and 7407 trainers.
In order for this unit to work correctly the 7407 carrier demodulation and data reformatting receiver is required.
Experiments:
- Data formats
- Amplitude shift keying
- Frequency shift keying
- Phase shift keying
- Differential phase shift keying
- Quadrature phase shift keying
- Differential quadrature phase shift keying
Key Features
- Functional blocks indicated via on board mimics
- Test points
- On-board carrier generation circuit (sine waves synchronized to transmitted data)
- On-board in phase and quadrature phase carrier for QPSK modulation
- Different data conditioning formats – NRZ(L), NRZ(M) RZ, biphase (Manchester), biphase (mark), AMI, RB
- FSK, PSK, DPSK, ASK & QPSK and DQPSK carrier modulation
- On-board unipolar to bipolar conversion
- On-board data inverter, clock source and 8-bit data source
100% Original and quality
