Digital Electronics Lab

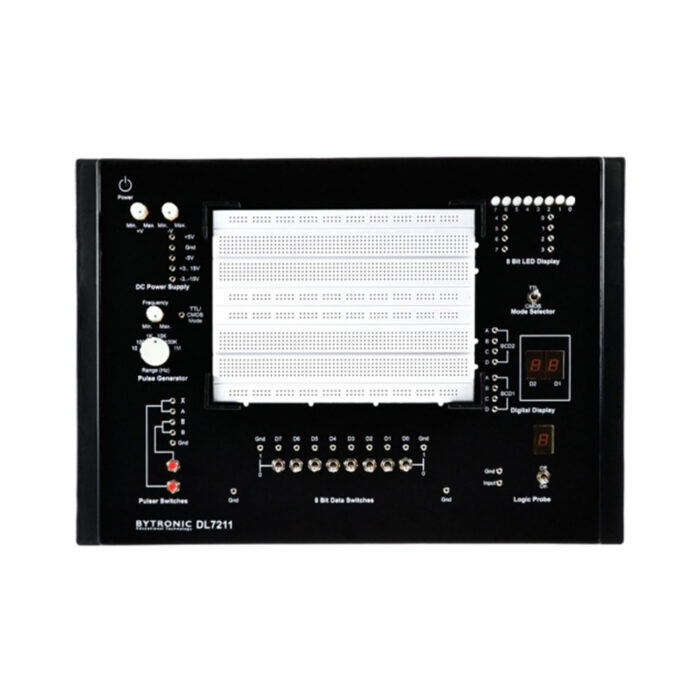

The DL7211 is designed for experimentation with digital circuits. It is a self-contained trainer including DC power supplies, function generator, modulation generator, continuity tester, potentiometers and toggle switches. A breadboard is supplied with the unit to allow easy access for the students to connect and test various components without the hassle of soldering. A number of ready to use experiment circuit boards are available and fourteen boards are provided with the lab.

Experiments Boards:

• Logic Gates: AND, OR, NAND, NOR and EX-OR
• Universal Gate – NAND/NOR Gate: NOT, AND, OR Gate Implementation
• EX-OR Gate Implementation
• Demorgan’s Theorem
• EX-OR Gate Application: Odd and Even Parity Generator, Binary word comparator
• Code Conversion: Binary to Gray and Gray to Binary
• Code Conversion: BCD to Excess-3 Code
• Binary Adder/Subtractor: 2 Bit Binary Half Adder, 3 Bit Binary Full Adder, 2 Bit Binary Half Subtractor, 2 Bit Binary Parallel Adder
• Encoder/Decoder: 8 to 3 Line Encoder, 3 to 8 Line Decoder
• Multiplexer/Demultiplexer: 4 to 1 Line Multiplexer, 1 to 4 Line Demultiplexer
• Flip-Flops: R-S, D, J-K, T Flip-Flops
• Shift Register: 4 Bit Serial In – Parallel Out
• 4 Bit Synchronous Binary Counter: Up Counter
• 4 Bit Binary Ripple Counter: UP/DOWN Counter

Key Features

• Solderless Breadboard
• On Board DC Power supply
• On Board Pulse Generator  with TTL/CMOS mode
• Pulser switches, 8 bit data switches
• Bicolor LED display
• BCD to Seven Segment Display
• CMOS/TTL outputs
• Functional blocks indicated on board mimic
