Additional information
| Brand | Essom |
|---|

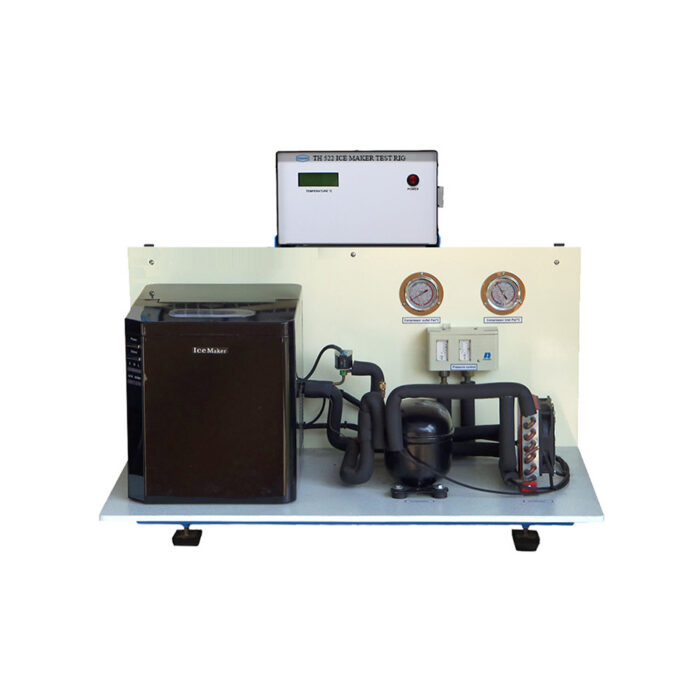

Ice Maker Test Rig
This table top refrigeration system is intended for studying ice making process.
The unit comprises a typical refrigeration system whereby a small ice maker is used for evaporator. Instruments are provided for measurement of pressures and temperatures.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Familiarization with ice making system and components.
- P-h diagram.
- Coefficient of performance.
TECHNICAL DATA
| Ice making unit | 0.4 kg/h |
| Refrigerant | R134 |
| Measuring instruments: | |
| − Pressure gauges | 2 ea. |
| − Sensors with digital display | Temperature for compressor inlet and outlet, evaporator inlet, condenser outlet and ice/water in the ice tank |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50Hz. Other power supply is available on request. |
