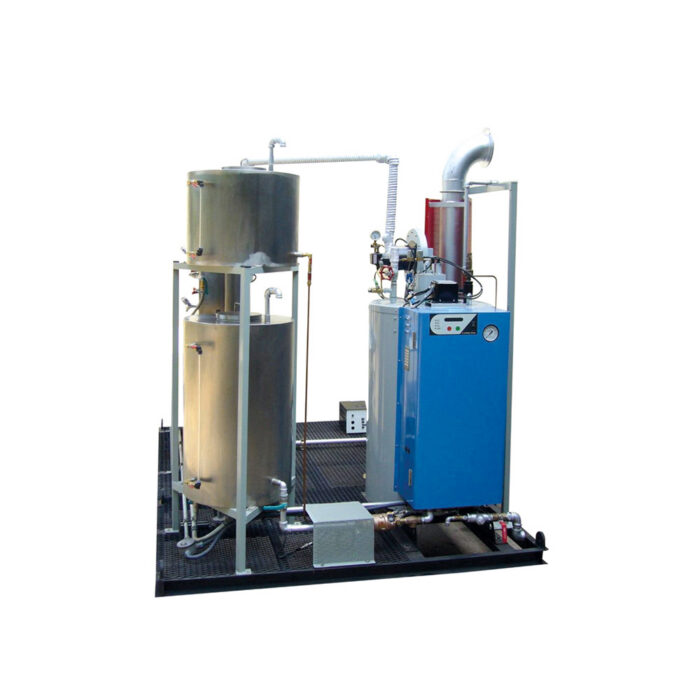

Training Boiler: 200 kg/hr
This is a set of steam boiler and standard accessories for a study of boiler performance.
The basic unit consists of a small industrial type boiler with a burner, a feed water system, a fuel system, and instruments for monitoring boiler operation as well as instruments for control and safety. The complete unit is arranged as a package on a pallet for easy site installation. Optional equipment are available for additional experiments.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Pressure, temperature and flow measurements.
- Heat of combustion, heat given to steam and boiler efficiency.
TECHNICAL DATA
The boiler set consists of:
| Boiler unit: | |
| – Type | Vertical, water tube |
| – Rated output | Approx. 125 kW (107,800 kcal/h) |
| – Equivalent evaporation | Approx. 200 kg/h steam |
| – Measuring instruments | Pressure gauge for steam outlet , Temperature for feed water, outlet steam and exhaust stack |
| – Safety devices | Safety valve , Low level alarm |
| – Boiler accessories | Steam pressure regulator , Steam separator , Feed water pump , Stack, 2x 2.4 m stainless steel with elbows |
| Burner: | |
| – Type | Forced draft, pressure atomized |
| – Control | On-Off |
| – Fuel | Diesel or kerosene (LPG is available as an option) |
| Fuel system | Fuel tank, fuel meter and oil strainer. |
| Feed water system | Resin filter, soft water tank and water meter. |
| Power supply | 220 V, 1 Ph, 50Hz. Other power supply is available on request. |
