Mini Pelton Turbine

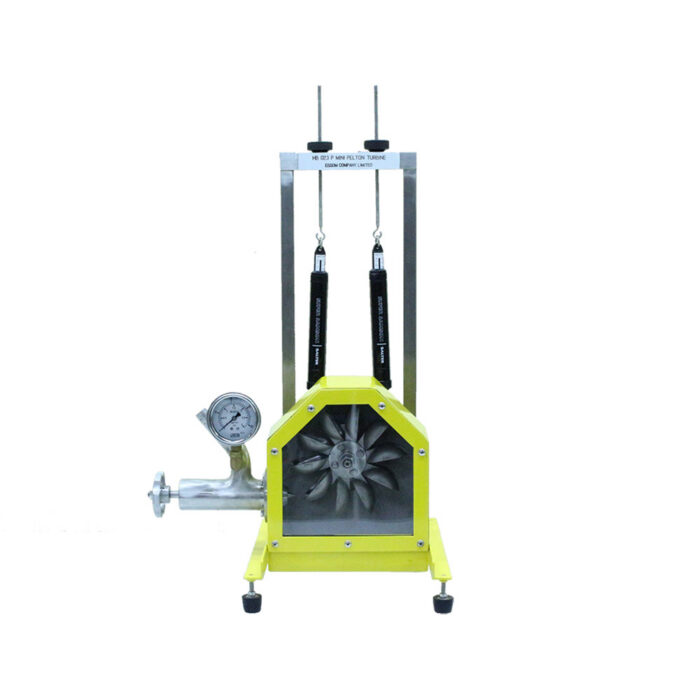

This equipment demonstrates Pelton turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
The adjustable turbine nozzle directs water jet to the runner buckets. Nozzle pressure is indicated by a pressure gauge. Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench measuring tank.
TYPICAL EXPERIMENTS
- Efficiency of Pelton turbine
- Characteristic of Pelton turbine
- Turbine torque and power output versus speed and flow rate at various heads.
TECHNICAL DATA
| Construction | Stainless steel casing with transparent window | |
| Maximum power | 40 W | |
| Measuring instruments | ||
| – Torque | Spring balances | |
| – Speed | Portable tachometer | |
| Accessory | Inlet hose | |
| Software for data display and analysis by computer (separately supplied). | ||
100% Original and qualityRelated products
-
Hydraulic Studies and AccessoriesHydraulic Bench – Gravimetric
This is a service unit which provides water supply and gravimetric measurement for use in conjunction with other accessories for specific experiments (separately supplied).
The bench top is flat fiber glass with a raised edge to hold spilled water and has a quick coupling water outlet, water discharge tube as well as 4 drain holes. The experiment accessories on the bench top discharges water to the measuring tank via a tube. A measuring tank is hung on a cantilever beam on ball bearings. An adjustable tare weight and known weights are provided. When the water in the measuring tank exceeds the set weight, the beam will tilt and the measuring tank automatically discharges to the main storage tank which is drained at the bottom. A pump draws water from the storage tank and supplies to the outlet at the top. The unit is on a steel frame on wheels.
Instruction manual is also included.
TECHNICAL DATAPump 0.37 kW Bench top dimensions Approx. 126 cm long x 77 cm wide Measuring weight Over 45 kg Load hanger and equivalent weights 1 lot. Main storage tank Approx. 170 L. Accessories Stop watch and outlet hose with fittings for connection to accessory Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews) -
Hydraulic Studies and AccessoriesFlow Meters
This equipment determines the coefficients of discharge for different flow measuring devices. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
The equipment consists of a Venturi tube, an orifice plate, and a Pitot tube, made from a clear acrylic, connected in series. Pressure drop across each device is connected to a water manometer bank with a vent valve and a hand air pump.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Accuracy of different flow meters
- Losses and k value
- Calculation of the coefficient of discharge
TECHNICAL DATAVariable area flow meter 1 ea. Venturi tube 1 ea. Orifice plate 1 ea. Pitot tube 1 ea. Water manometer 1 ea. Software for data display and analysis by computer (separately supplied). (0 reviews)
