Hydrostatics Panel

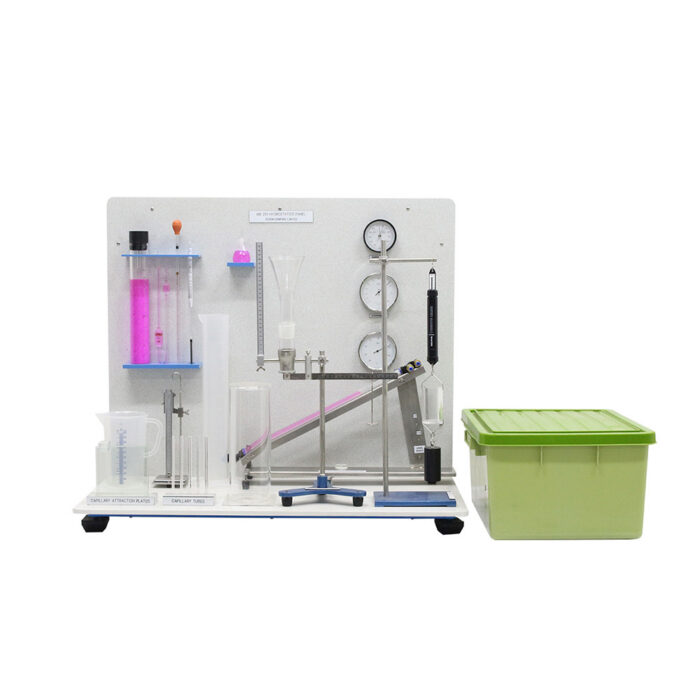

The equipment is a bench top unit for the study of basic properties of fluids in hydrostatic conditions. Components are placed on the panel. The unit can be placed on a suitable bench top and requires outside water supply to be stored in the provided storage tank.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Measurement of level, pressure, temperature, specific gravity, viscosity, humidity.
- Demonstration of Pascal’s law, Archimedes principles, capillary effect.
TECHNICAL DATA
The accessories for the panel include:
- Inclined water manometer
- Barometer
- Hygrometer
- Thermometer
- Hydrometer
- Stainless steel vernier hook gauge
- Capillary attraction plates
- Capillary tubes
- Capillary viscometer
- Falling sphere viscometer
- Specific gravity bottle
- Triple beam balance
- Beaker, graduated cylinder and pipette.
- SP 111 Archimedes apparatus.
- SP 112 Pascal’s apparatus.
- Software for data display and analysis by computer (separately supplied).
- Storage tank
100% Original and qualityRelated products
-
Fundamental Hydraulic Studies and AccessoriesPipe Friction
This equipment measures pressure drop when water flows through a vertical pipe at various flow rates both laminar and turbulent. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
It consists of adjustable constant head water source of removable clear acrylic cylinder for laminar flow. Turbulent flow may be achieved by directly connecting the pipe to the Hydraulics Bench water supply. A water manometer with a vent valve, a hand air pump and a differential pressure gauge are provided for measurement of pressure drop. A valve at the outlet is used to control outlet pressure.
TYPICAL EXPERIMENTS- Investigations of laminar and turbulent flows
- Demonstration and measurement in a change of the laws of resistance (friction factor) from laminar to turbulent flow
TECHNICAL DATAWater manometer 450 mm x 1 mm graduation. Differential pressure gauge 1 ea. Test section length Over 500 mm. Measuring cup 1 L. Software for data display and analysis by computer (separately supplied) (0 reviews) -
Fundamental Hydraulic Studies and AccessoriesHydrostatics Pressure – Tilting Submerged Quadrant
This equipment allows the moment caused by a fluid thrust on a wholly or partially submerged plane surface to be measured directly. This surface can be tilted.
A PVC quadrant is hinged on a shaft pivoted on knife edges which coincide with the quadrant center. The quadrant position is adjustable relative to a balance arm such that the submerged plane surface can be tilted by changing the lock pin position. A depth scale is indicated on the quadrant. When the quadrant is immersed in water, there are hydrostatic forces.
The balance arm has an adjustable counter balance and weights with a hanger. The quadrant is mounted on top of a clear acrylic tank which allows water to be admitted and drained to required level by a valve. The tank rests on adjustable footings and a bull’s eye level is provided.
TYPICAL EXPERIMENTS- Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam
- Determination of the Centre of Pressure
TECHNICAL DATAQuadrant Inner radius 100 mm – Outer radius 1 lot. – Width 75 mm Tilting angle 0 to 30 degrees in either direction. Weights 1 lot. Software for data display and analysis by computer (separately supplied). (0 reviews)
