| Brand | Essom |
|---|

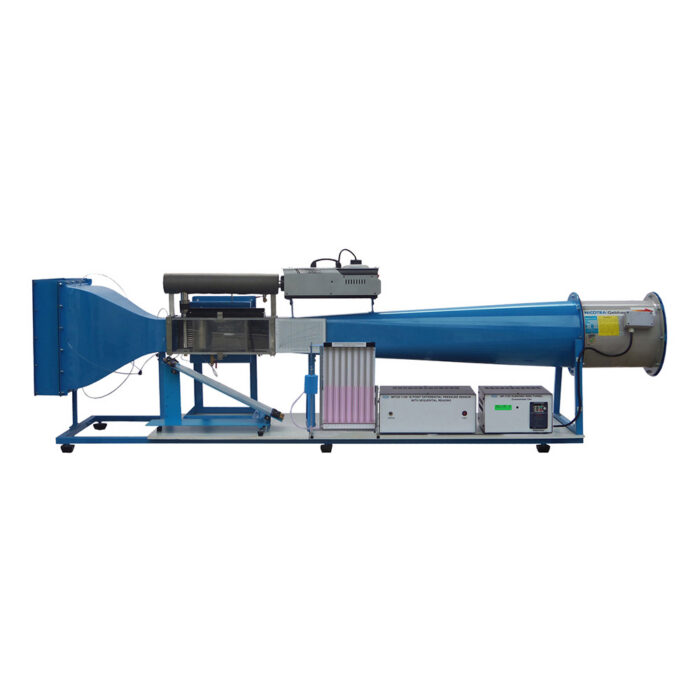

MP 315D Subsonic Wind Tunnel: Downstream Fan
The subsonic wind tunnel is an open circuit down stream fan type designed for studying the subsonic aerodynamics. It is to be used with optional accessories and models below.
The air enters the tunnel via a wire mesh screen and a flow straightener. A high contraction ratio section ensures uniform velocity across the transparent test section. Downstream of the working section is a low angle diffuser which terminates at the tunnel fan. The diffuser and contraction sections have a high quality internal finish to minimize the boundary layer effects. The fan impeller blades are of an aerofoil design cast aluminum to ensure maximum aerodynamic efficiency and minimum turbulence. Fan speed is adjustable by an inverter.
Four equally spaced static pressure taps are connected to a manifold to minimize effects from a model. Air speed is indicated by an inclined manometer and a calibration graph. Models are mounted on two components balance support with digital display for measurement of drag and lift. Model holder can be rotated to allow quick change on the angle of incidence. This angle is indicated on an angular scale.
The tunnel is on a frame with adjustable footings for table top mounting.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Pressure and velocity measurement.
- Estimation of drag coefficients of various bodies, eg. sphere, hemisphere, disc, streamlined shape etc.
- Estimation of drag and lift coefficients of an aerofoil.
- Pressure distribution around an aerofoil or a cylinder.
- Investigation of boundary layer at a flat plate by measuring total head distribution.
- Stream lines visualization using a smoke generator.
- Wakes behind models.
TECHNICAL DATA
| Fan: | |
| – Diameter | 300 mm |
| – Impeller | Single stage, aerofoil blade |
| Contraction area ratio | 9:1 |
| Test section | 150 mm x 150 mm x 450 mm long, transparent on three sides |
| Maximum air velocity | Over 30 m/s |
| Measuring instruments | |
| – Water manometer | Twin type |
| – Wind velocity | Multiple taps contraction section differential pressure with velocity calibration graph (to be used with inclined water manometer above) |
| – Sensors with digital display | |
| – Lift and drag | Two component balance with model holder for measurement of lift and drag |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
