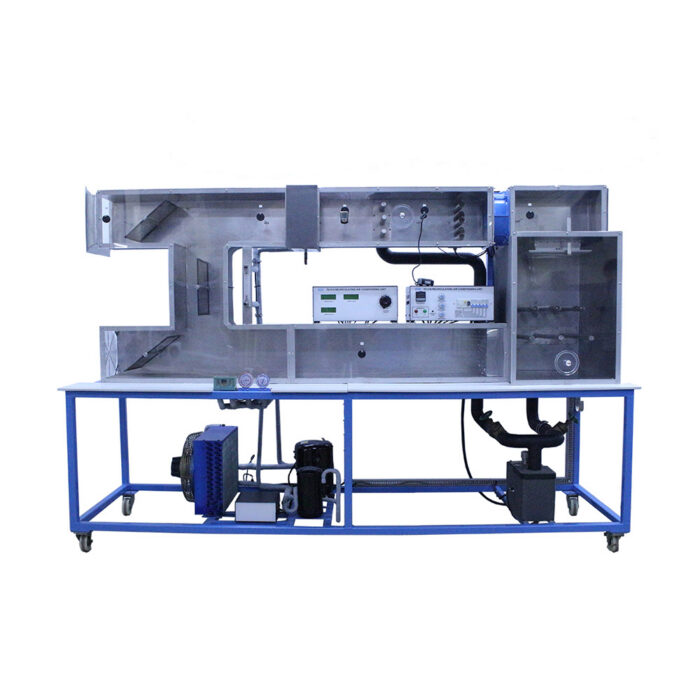

Recirculating Air Conditioning Unit (with Climatic Chamber)
This is a recirculating air conditioning unit with transparent windows and a climatic chamber.
Inlet air is cooled and preheated by a heater and latent heat by a humidifier before entering the climatic chamber for demonstration of climate control. The air in the climatic chamber is further heated by a heater and a humidifier before leaving. A fan after the preheater circulates the air. Part of the air leaving the climatic chamber is vented and the remaining is recirculated with make up fresh air entering the inlet duct. The amount of air recirculation is controlled by ventilation flaps. Steam generator, compressor and condenser are underneath the duct.
Measuring instruments are provided for air flow rate, and temperature and humidity at various stages. Additional instruments are provided for measurement of refrigerant flow rate, temperature and pressure as well as power for the compressor and heat sources.
The unit is on steel frame on wheels.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Familiarization with recirculating air conditioning system and components.
- Determination of preheating, cooling and dehumidification, humidification, and reheating processes.
- Energy balance in the preheater, evaporator, and reheater.
- Demonstration of preheating, cooling and dehumidification, humidification, reheating, and mixing processes on psychrometric chart.
- Demonstration of refrigeration cycle on Pressure-Enthalpy diagram of the refrigerant R134a.
- Determination of recirculating and mixing process of moist air.
- Effects of climatic chamber heat loads.
TECHNICAL DATA
| Air duct | 250 x 250 mm section. |
| Climatic chamber | Approx. 180 L |
| Fan | Adjustable speed |
| – Maximum airflow rate | Approx. 750 m3/h |
| Humidifier | 3000 W, adjustable. |
| Preheater | 3x 400W, adjustable |
| Reheater | 3x 200W, adjustable |
| Evaporator | 250 x 250 mm. |
| Compressor | Approx. 0.55 kW. |
| Refrigerant | R134a |
| Temperature controller | 1 ea. |
| Measuring instruments | |
| – Sensors with digital display |
|
| – Portable temperature/humidity meter | 0-50°C 10-90% RH, at duct inlet preheater inlet and climatic chamber outlet |
| – Refrigerant rotameter | Approx. 0.15-1.5 Lpm |
| – Pressure gauges | 2 ea. |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 380 V 3 Ph 50 Hz. Other power supply is available on request. |
