Additional information
| Brand | Essom |
|---|

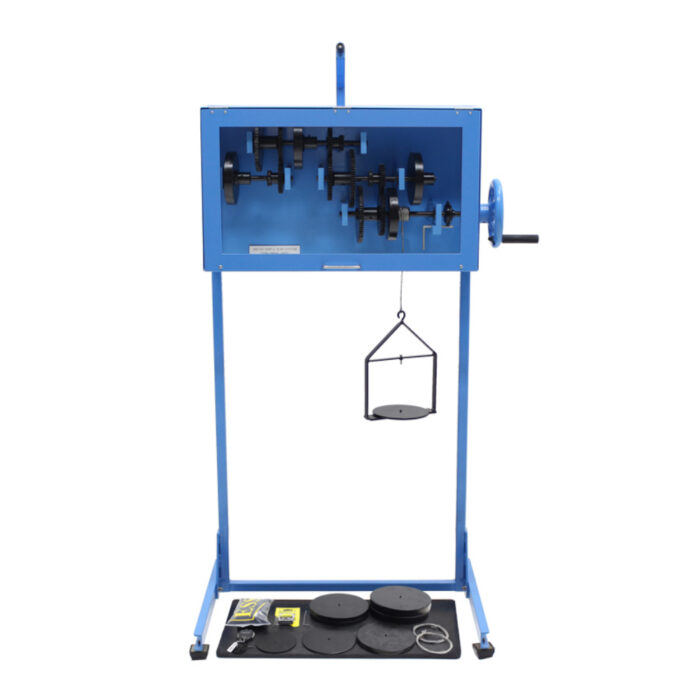

Simple Geared System
The system is for studying the acceleration of a gear system under different gear ratios.
The system consists four parallel shafts with fix and sliding gear and supported by ball bearings on a base frame. Shafts 1, 2 and 3 have two fixed gears. Shafts 2, 3 and 4 have two sliding gears. Each pair of adjacent shafts has two transmission ratios, providing 8 different gear ratios between the first and the last shaft. Inertia mass with torque drum is attached to each shaft. A cord wound around a drum and the weight hanger provides a means of applying a torque. The gear system is attached to a wall supported on two legs for weight hanger travel. By timing the fall of the weight hanger, the acceleration of the system can be calculated. A sprocket and lock pin, and a winding handle are provided for raising the weights. All gears are enclosed in a casing with a transparent cover for safety.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Inertia of a mass and of a geared system.
- Efficiency of a geared system.
TECHNICAL DATA
| Shafts | 4 ea. |
| Inertia masses | 4 ea. |
| Gear | Spur gear. |
| Maximum gear ratio | 64:1 |
| Cord with measuring tape | 1 set |
| Stop watch | 1 ea. |
| Weight hanger | 1 ea. |
| Weights | 1 lot |
| Accessories | Rubber pad |
| Software for data display and analysis by computer (separately supplied) | |
