Governor Apparatus

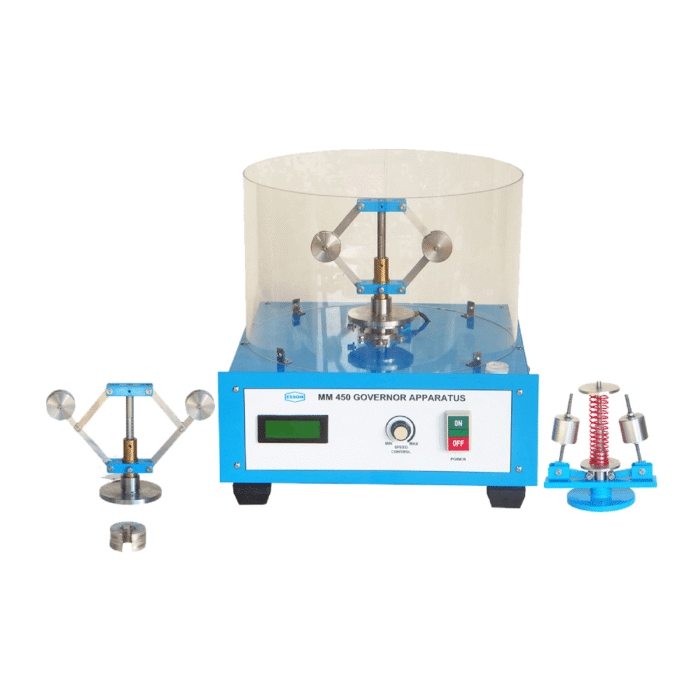

The apparatus is designed for studying motion and operation of Porter, Proell and Hartnell governors.
The equipment consists of a motor with flange for attachment of governor, speed controller with sensor and indicator, governors with shaft scale for lift measurement and weights. A transparent cover is provided for safety.
Instruction manual is also included.
TYPICAL EXPERIMENTS
Speed vs. displacement at various weights for Porter, Proell and Hartnell governors.
TECHNICAL DATA
| Governors |
|
| Rotor motor | DC geared motor with speed controller |
| Rotor speed | Up to 400 rpm |
| Balancing weights | 1 lot. |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
