Single Cylinder Gasoline Engine Test Bed: Computer Control

This is a test bed for a single cylinder gasoline engine with computer control. The engine is connected to a dynamometer on the test bed by a coupling with a safety guard. A fuel tank with a fuel flow and…

This is a test bed for a single cylinder gasoline engine with computer control.

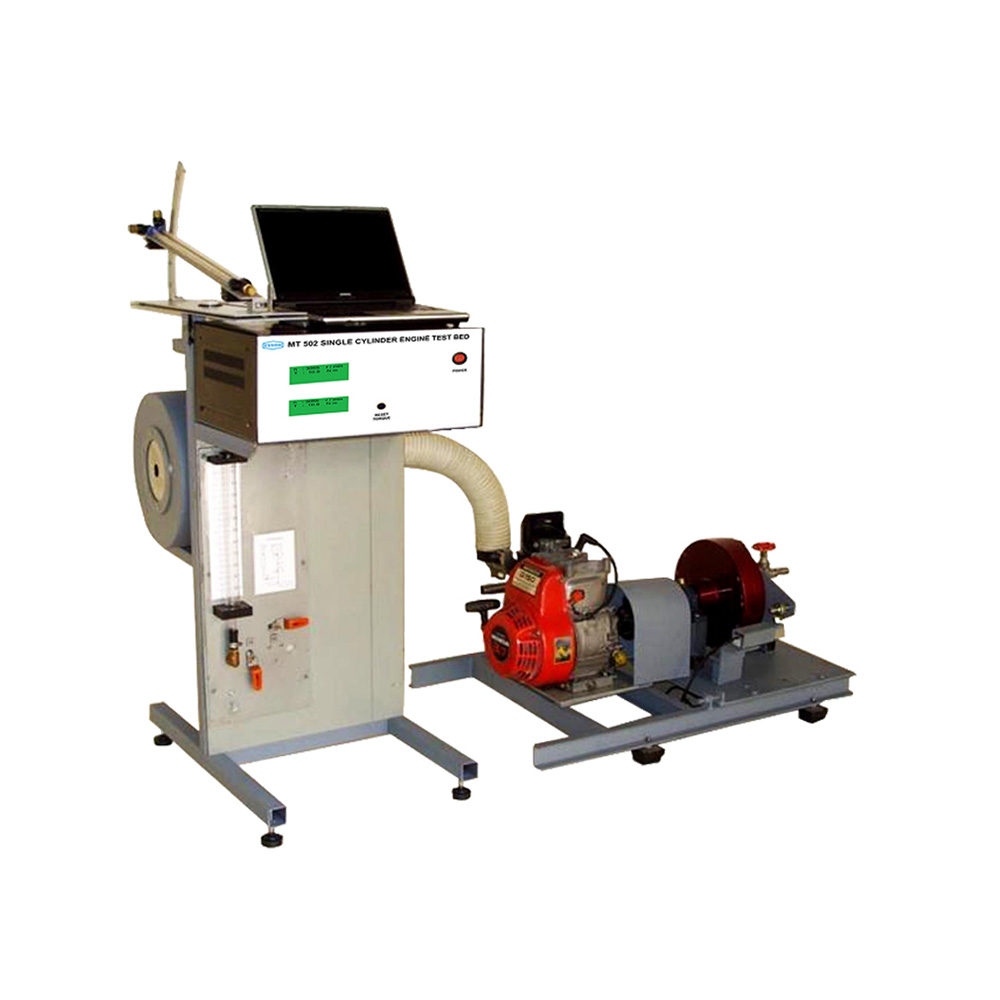

The engine is connected to a dynamometer on the test bed by a coupling with a safety guard. A fuel tank with a fuel flow and an air flow measuring instruments are on a stand next to the engine.

Data display, analysis, and control are by computer (separately supplied).

The dynamometer requires outside water supply for cooling.

Instruction manual is also included.

TYPICAL EXPERIMENTS

Torque vs engine speed at various throttle setting.
Engine brake horsepower and efficiency vs speed
Specific fuel consumption
Air/fuel ratio
Volumetric efficiency

TECHNICAL DATA

Dynamometer
– Type	Water brake absorber.
– Maximum Torque	At 2500 rpm. over 110 Nm.
– Maximum Speed	8000 rpm.
Engine	Gasoline engine 3.7 kW, or as required.
Sensors with digital display	Dynamometer torque Engine speed Fuel flow rate Differential pressure for air box with pulse reducer and orifice plate for measuring air flow rate Temperature for absorber water outlet, ambient air, and exhaust gas
Control	Engine throttle and dynamometer load.
Computer interface unit and software for data display, analysis, and control by computer (separately supplied).
Power supply	220V 1 Ph 50 Hz. Other power supply is available on request.
