Split Type Air Conditioner System

Split Type Air Conditioner System for demonstrating room AC operation with visible components, pressure–temperature readings, and control function study.

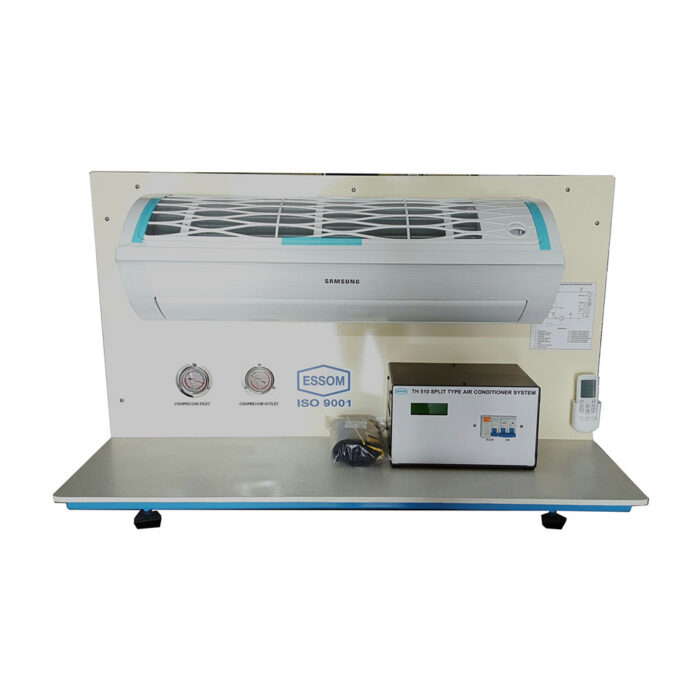

Split Type Air Conditioner System. This unit is used for the demonstration of split type room air conditioning operation. Individual components are clearly shown. Temperatures and pressures at various points are indicated.

Instruction manual is also included.

TYPICAL EXPERIMENTS

Study of layout and process diagram
Observation of pressures and temperatures
Remote control operation

TECHNICAL DATA

Cooling capacity	Approx. 2.5kW or 9000 BTU
Compressor type	Rotary
Refrigerant	R32
Measuring instruments
– Pressure gages	2 ea.
– Sensors with digital display	Temperature for compressor inlet, outlet, condenser outlet, expansion valve outlet and air – side of evaporator inlet and outlet
Remote control
Required power	1 ea.
Software for data display and analysis by computer (separately supplied).
Power supply	220 V, 1 Ph, 50Hz. Other power supply is available on request.
