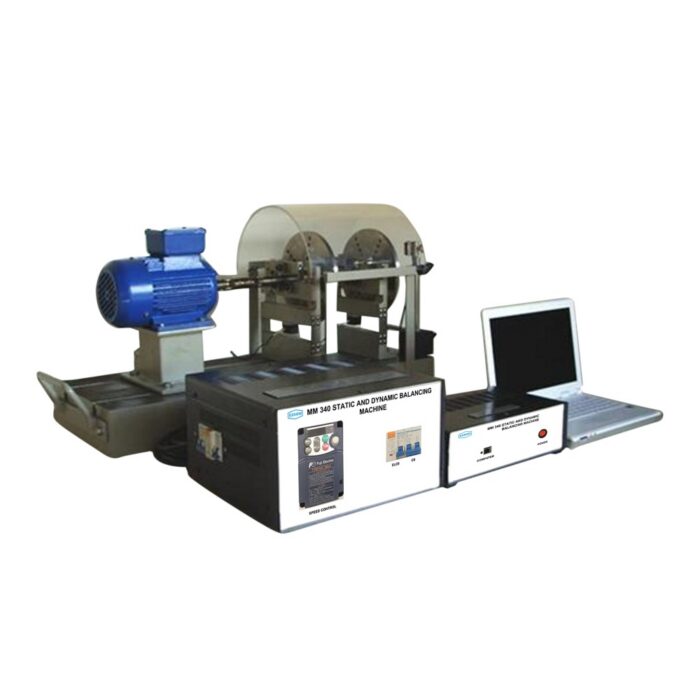

Static and Dynamic Balancing Machine: Computer interface

The machine is used for studying of balancing principles.

A rotor shaft is connected to the motor by a double universal joint and rests on two supports with adjustable distance between supports. Each support holds the shaft in place by three bearings with crest. Two standard rotors and two radially slotted rotors are provided for various cases of balancing. The unbalance forces are picked up by two vibration transducers and converted to digital signals. The speed is adjusted by an inverter and speed signal is provided by a sensor. The magnitude and angle of the unbalance for each plane is analyzed and displayed on a computer (separately supplied). The vibration and speed transducers are removable for field use. A note book computer is recommended for field use but is not included in the scope of supply. A transparent cover is provided for safety.

Instruction manual is also included.

TYPICAL EXPERIMENTS
  • Single plane balancing.
  • Two plane balancing.
  • Balancing machine calibration.
  • Single plane field balancing.
  • Two plane field balancing.
TECHNICAL DATA
Balancing bed
 – Maximum rotor diameter 250 mm
 – Maximum working shaft length 200 mm
Standard rotors:
 – Quantity 2
Slotted rotors:
 – Quantity 2
Balancing weights
 – Calibrated bolts 1 lot
 – Calibrated washers 1 lot
 – Calibrated nuts 1 lot
Motor 0.75 kW.
Speed control 0.4 kW, inverter
Speed measurement Speed sensor
Vibration transducers 2
Computer interface unit
Software for both laboratory and field balancing for data display and analysis by computer (separately supplied).
Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
