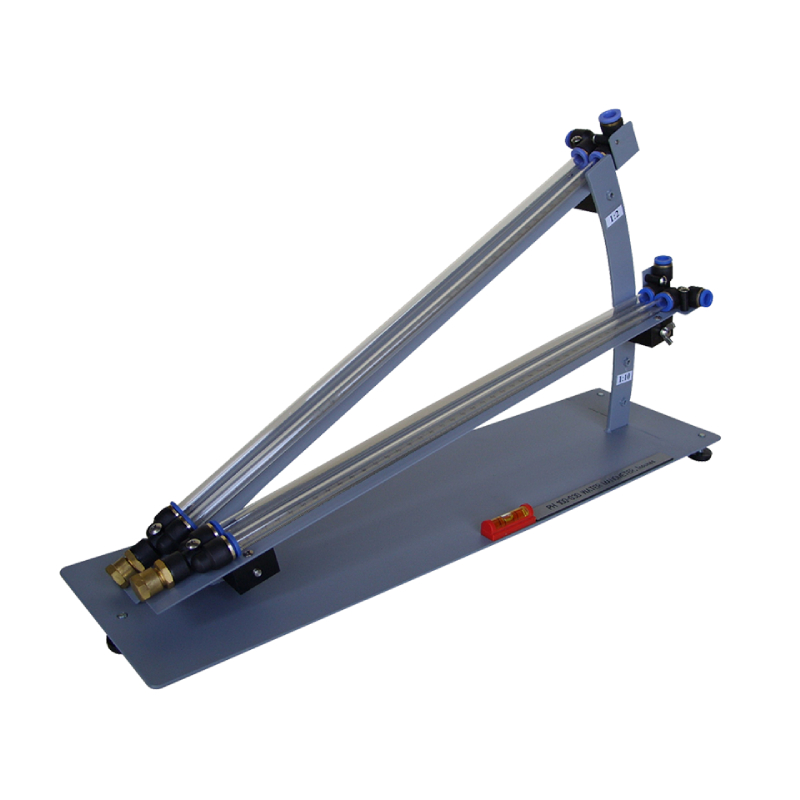

Water Manometer: Inclined. Air Pressure

This water manometer employs two connected clear acrylic tubes to form U shape. The tube slope is adjustable. Pressure ports are at the tube top ends.

Scale 450 mm.
Number of tubes 2 standards
Standard slopes 4 different slopes.
Application Low differential air pressure
Net dimension WxLxH 15x55x30 cm
Optional  PH 100-031 Two inclined manometers on the same frame
Net dimensions WxLxH 20x55x30 cm
Optional Other length is available on request
In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
SKU: PH100-030 Category: Tags: , , ,
100% Original and quality

Additional information

Brand

Essom
