Archimedes Principle Apparatus
This archimedes principle apparatus demonstrates that the buoyancy acting on a body submerged in a liquid corresponds to the weight of the displaced liquid.

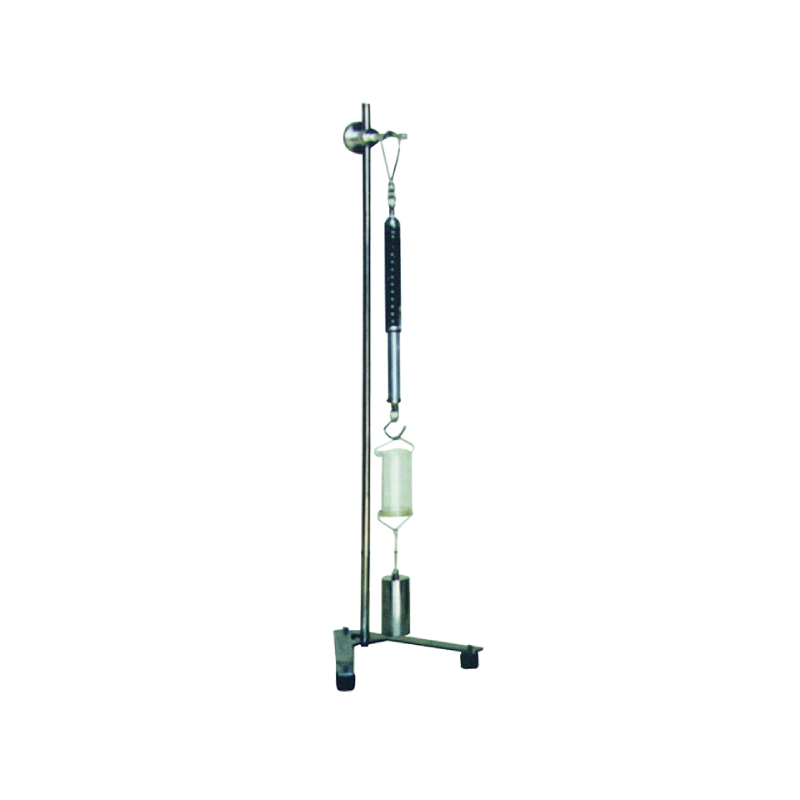

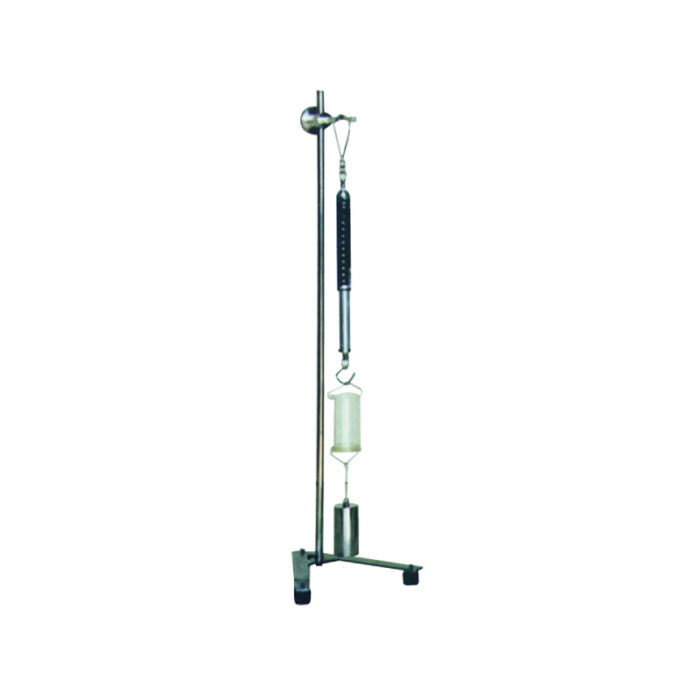

The equipment consists of a solid cylinder fits exactly into a hollow acrylic cylinder. Both cylinders have hooks for attachment to a spring balance hung on a stand. A beaker holding a liquid provides the buoyancy.
TECHNICAL DATA
| Cylinder dimension | 40 mm diameter x 80 mm long |
| Spring balance | 1 kg |
| Beaker | 1000 mL |
